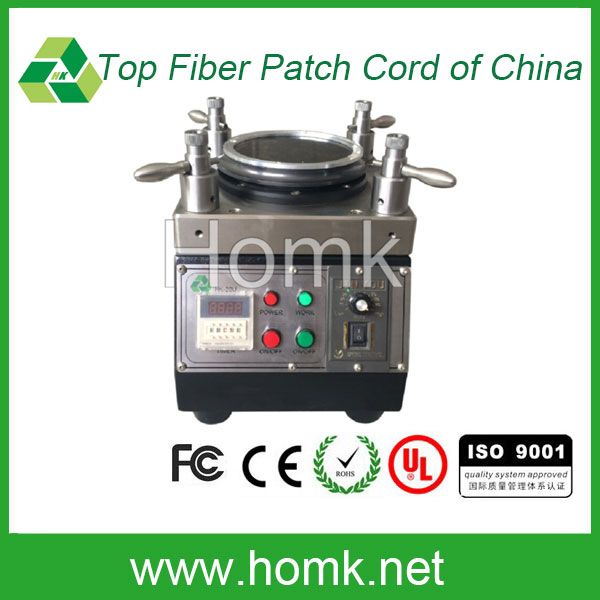

- Model NO.: HK-20U
- Wiring Devices: Fiber Polishing Machine
- Condition: New
- Model Number: HK-20u
- Application: Sc FC St LC MPO MTP MTRJ E2000 Mu Ect Connector
- Color: Black
- Voltage: 120/220V,220-240VAC
- Weight: 30kg
- Transport Package: Carton
- Origin: Shenzhen Guangdong
- Type: Fiber Polishing Machine
- Certification: CE, ISO, RoHS, GS
- Brand Name: Homk
- ODM/OEM: Acceptable
- Warranty: 2 Years
- Performance: Polishing Passing Rate More Than 98%
- Size: W230 × D230 × H350 mm
- Trademark: HOMK
- Specification: CE, ISO, RoHS, GS
- HS Code: 84642090
02. Simple operation and maintenance
03. Be suitable in LC/UPC, LC/APC, FC/UPC, FC/APC, SC/UPC, SC/APC, ST/UPC, MTRJ, MT/PC, MT/APC and E2000 and other types of connector
04. Speed regulation control, speed selection scope is 30 ~ 160 RPM. Slow start function.
05. The polishing time can be reduced to the original by 1/2
06. Load ability: Allow more of 48 PCS fiber optic connectors
07. The password keeps all polishing parameter not to modify, make sure you have the correct polishing process will not be changed.
08. The Full-Color Touch Screen Programmable Fiber Polishing Machine using heat treatment all materials, and long service life
09. Polishing process by microcomputer control, may realize the polishing time and process more be precise.
10. Double insurance TN-S grounding system and leakage protection switch, to an extreme protect operator
11. Unique compensation setting function, it not only strictly control polishing film costs least, but also maintain high quality consistency.
Parameters:
| Item | Index |
| Power source | |
| Voltage : Frequency | AC 110-120V: 50Hz/60Hz Or AC 220-240V: 50Hz |
| Power waste | 80VA |
| Drive Units | |
| Big motor (rpm) | 15W,Including transmission |
| Small motor (rpm) | 6 W,Including transmission |
| Fan | φ90mm |
| Operation unit | |
| Control time | Set the growth time of 0.1mins ,maximum time is 3min the middle button is power switch, right button is the start switch |
| Power switch | |
| Timing switch | |
| Pressure unit | 4 coil spring |
| Pressure way | |
| Polishing | |
| The least grinding ferrule abrasive sheet level grinding by polishing pad and polishing by PC connector | 1 - 10 connector |
| Outer diameter:127mm | |
| Glass pad | |
| Synthetic rubber pad | |
| Performance | |
| Polish PC connector | Four-step, 1.4 to 2.4 minutes |
| Polish APC connector | Five-step, 3.0 to 5.0 minutes |
| Dimension | W230 × D230 × H350 mm |
| Weight | 30 kg |
