1. Summarize

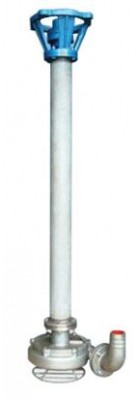

1. FYH Series Vertical Submerged Pump is a new kind of vertical single-stage single-suction centrifugal pump.
2. Its technology parameters, flange connection dimensions and other items all apply the ISO02858International Standard.
3.Compared with original vertical submersible pump, it has much smaller size and better energy-saving effect and higher reliability.
4.Suitable for transferring of corrosive liquids without solid particles and grinding materials in the medium.
5.Widely used in petroleum industry, municipal engineering, buildings, sewage treatment and etc.
2. Features:
1.The pump is vertical submerged pump, nice appearance, directly installed on the storage of transferred medium.
2.It is quite simple and convenient; no additional space is needed to save the Infrastructure investment.
3.Quitting the traditional mechanical seal and so wear causing maintenance is reduced, the cost of operation lowered and working efficiency higher.
4.Unique centrifugal impeller: transfer the clean liquids without solid particles; low vibration and noise.
5.Open type impeller: delivery of unclean liquids with solid particles and short fibers.
6.Easy installation, stable operation, good performance and convenient maintenance.
1.Medium temperature: 0~105°C.
2.Temperature at -20~0°C,105~180°C, heating jacket and cooling jacket, using low temperature and high temperature wear-resisting guiding bearing, and these conditions need to be informed clearly.
3.Working pressure: 1.6Mpa.
4.Parameter range: Flow capacity:1.6~16000m³/h; Head:5~80m.
5.Material:Vary per different transferring medium.
6.Cast iron (H); Cast steel ; 1Cr18Ni9Ti (B); 1Cr18ni12Mo2Ti(M),304,304L,316L904,Lewmet Alloy: NO. 20 Alloy.
