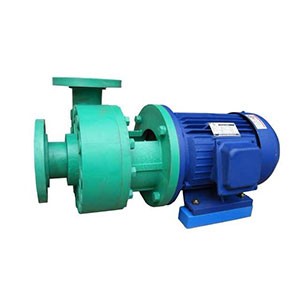

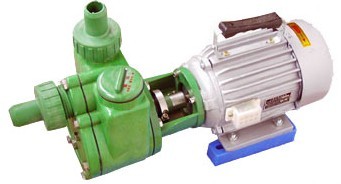

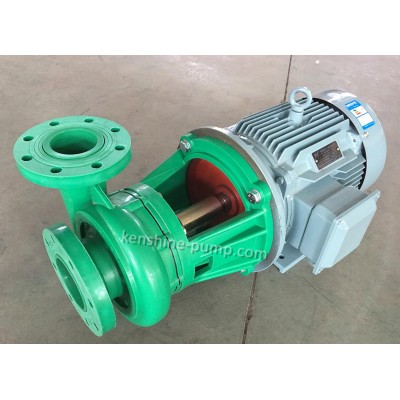

FP Series polypropylene reinforced plastic chemical transfer centrifugal pump with shaft coupling
FP Series reinforced polypropylene corrosion resistance centrifugal pump
Summary:
FP Series reinforced polypropylene corrosion resistance centrifugal pump has the advantages such as advanced structure, small volume, light weight, energy-saving and good seal and corrosion resistance etc. The pump is widely used to transport the acid and alkali and salt etc corrosive liquids in chemical industry and light industry and waste dealing etc. FP Series reinforced polypropylene centrifugal and FS Series etc pumps all use the mechanical seal and are made from CFR-PP (Reinforced polypropylene) and ABS(Engineering plastic) etc.
The 104 pump with 220V can be in domestic use.
Parameter:
| Model | Pump caliber | Flow rate | Head | Suction height | Speed | Voltage | Motor Power | |
| Inlet | Outlet | m³/h | M | M | rpm | v | KW | |
| FP20-15-100(105) | 20 | 15 | 3 | 7 | 4 | 2900 | 380 | 0.75 |
| FP32-25-100(104) | 32 | 25 | 4 | 7 | 6.5 | 2900 | 220 | 0.55 |
| FP32-25-105(103) | 32 | 25 | 6.3 | 8 | 6.5 | 2900 | 380 | 0.75 |
| FP40-32-125(102) | 40 | 32 | 12.5 | 20 | 6.5 | 2900 | 380 | 1.5 |
| FP50-40-130(101.5) | 50 | 40 | 13 | 22 | 6.5 | 2900 | 380 | 2.2 |
| FP65-50-150(101) | 65 | 50 | 25 | 25 | 6 | 2900 | 380 | 4 |
| 50FP-22 | 50 | 40 | 13 | 22 | 6 | 2900 | 380 | 2.2 |
| 65FP-25 | 65 | 50 | 20 | 25 | 6 | 2900 | 380 | 4 |
| 80FP-28 | 80 | 65 | 50 | 28 | 4 | 2900 | 380 | 5.5 |
| 80FP-32 | 80 | 65 | 50 | 32 | 4 | 2900 | 380 | 7.5 |
