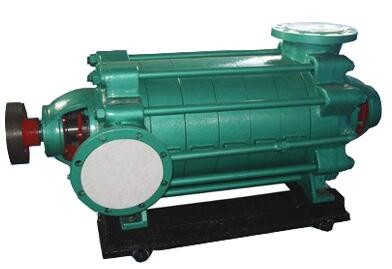

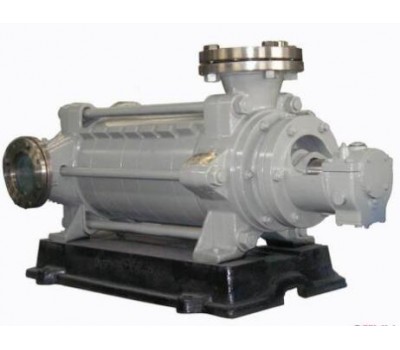

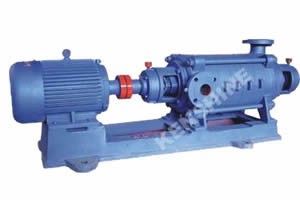

DY Horizontal multistage centrifugal oil transfer pump

$3500.00 /Set


Stock:	1000 Sets
Quantity:	-+ Min Order: 1 piece

Entrust Procurement

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

DY series multistage centrifugal oil pump is used to transport the oil and oil products without solid grains. Oil temperature: -20 degree celsius～150 degree celsius. The oil viscosity is less than 120 centipoise.
   Performance Range:
Q=6.3-450m3/h,   Head=50-660m (Middle and low pressure)   409-1056 (high pressure)
Shaft seal is flexible gland packing or mechanical seal. High pressure pump is normally with slip bearing of thin lubricate. Other pumps are roll bearing of dry lubricate. Middle and low pressure is made of cast iron and high pressure pump is made of cast steel and stainless steel.
   The pump is horizontal single suction multistage sect centrifugal pump with high efficiency and long life and convenient maintenance etc.

The pump can be used to transport clear water without solid grains and suspension and other liquids similar to clear water in physical and chemical characteristic. It can also be used to transport the hot water and oil and corrosive and abrasive liquids by changing material of pump and flow parts and seal and cooling system etc.

Parameter:

Model	Stage	Capacity		Head	Speed	Shaft	Motor	Effic.	NPSH(r)
Model	Stage	m3/h	L/S	m	rpm	Power (KW)		%	NPSH(r)
50DY30-36	2	30	8.33	72	2950	9.80	15	60	3.1
	3	30	8.33	108		14.70	22	60	3.1
	4	8.33	144	152		19.61	30	60	3.1
	5	30	8.33	180		24.51	37	60	3.1
	6	30	8.33	216		29.41	37	60	3.1
	7	30	8.33	252		34.31	45	60	3.1
	8	30	8.33	288		39.31	55	60	3.1
	9	30	8.33	324		44.11	55	60	3.1
80DY50-50	2	50	13.89	100	2950	20.02	30	68	3.0
	3	50	13.89	150		30.03	37	68	3.0
	4	50	13.89	200		40.04	45	68	3.0
	5	50	13.89	250		50.05	55	68	3.0
	6	50	13.89	300		60.06	75	68	3.0
	7	50	13.89	350		70.07	90	68	3.0
	8	50	13.89	400		80.08	90	68	3.0
	9	50	13.89	450		90.09	110	68	3.0
100DY100-60	2	100	27.8	120	2950	45.4	55	72	5.0
	3	100	27.8	100		58.0	75	72	5.0
	4	100	27.8	240		90.0	110	72	5.0
	5	100	27.8	300		113.5	132	72	5.0
	6	100	27.8	360		136.2	160	72	5.0
	7	100	27.8	420		158.6	200	72	5.0
	8	100	27.8	480		181.6	200	72	5.0
	9	100	27.8	540		204.3	220	72	5.0
125DY90-20	2	90	25	43.2	1450	14.4	22	74	5.0
	3	90	25	64.8		21.6	30	74	3.4
	4	90	25	86.4		28.8	45	74	3.4
	5	90	25	108		36.0	55	74	3.4
	6	90	25	130		43.2	75	74	3.4
	7	90	25	151		50.4	75	74	3.4
	8	90	25	173		57.6	90	74	3.4
	9	90	25	194		64.8	90	74	3.4
150DY155-30	2	155	43	60	1450	32.9	45	77	3.5
	3	155	43	90		49.3	75	77	3.5
	4	155	43	120		65.8	90	77	3.5
	5	155	43	150		82.2	110	77	3.5
	6	155	43	190		98.7	132	77	3.5
	7	155	43	210		115.1	160	77	3.5
	8	155	43	240		131.6	160	77	3.5
	9	155	43	270		148.0	220	77	3.5
