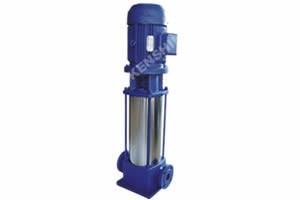

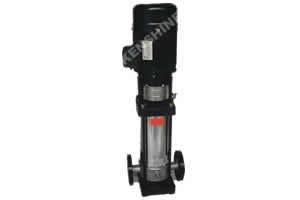

DL,DLR Vertical Multistage Centrifugal Pump hot water pump
$1260.00 /Unit
Stock: 1000 Units
Quantity:
-+
Min Order: 1 piece
Entrust Procurement
Send Inquiry
Seller Support:
Trade Assurance — To protect your orders from payment to delivery
Product Details
Transaction Comments

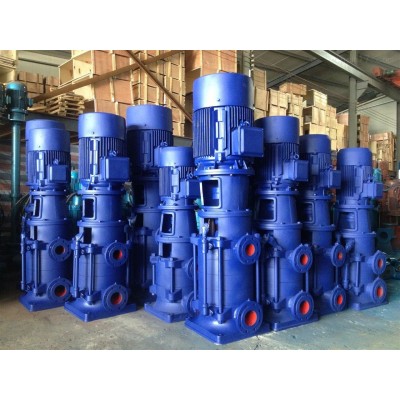

DL,DLR Series vertical multistage centrifugal pump
DL Series vertical multistage centrifugal pump is designed and manufactured as JB/T2727-93 on the base of horizontal multistage centrifugal pump. Inlet and outlet of pump is in up and down structure. Users can rotate them in 90°、180°、270° angle. Shaft of pump and shaft of motor are in the same level. Mechanical seal and bearing with low noise make the pump operate steadily and long life. The pump has the small space and high head and convenient installment and maintenance etc.
It is suitable to supply water and discharge water which temperature is below 90℃ or liquids which are similar to water in physical and chemical characteristic in high-building and fire fighting and factory and mine and oil ground etc.
Parameter:
Model

Stage

Capacity

Total head(m) Speed(r/min) Power(Kw) Efficiency
(%) 		Suction height(m) (NPSH)r(m)
m3/h l/s Shaft Motor
50DL 2

9.0
12.6
16.2

2.5
3.5
4.5 		26.6
24.4
21.2 		1450 1.30
1.55
1.80 		3 50
54
52 		7.9
7.6
7.2 		2.58
2.66
3.16
3 9.0
12.6
16.2 		2.5
3.5
4.5 		39.9
36.6
31.8 		1.96
2.33
2.70 		3 50
54
52 		7.9
7.6
7.2 		2.58
2.66
3.16
4 9.0
12.6
16.2 		2.5
3.5
4.5 		53.2
48.8
42.4 		2.61
3.10
3.60 		4 50
54
52 		7.9
7.6
7.2 		2.58
2.66
3.16
5 9.0
12.6
16.2 		2.5
3.5
4.5 		66.5
61
53 		3.26
3.88
4.50 		5.5 50
54
52 		7.9
7.6
7.2 		2.58
2.66
3.16
6 9.0
12.6
16.2 		2.5
3.5
4.5 		79.8
73.2
63.6 		3.91
4.65
5.49 		5.5 50
54
52 		7.9
7.6
7.2 		2.58
2.66
3.16
7 9.0
12.6
16.2 		2.5
3.5
4.5 		93.1
85.4
74.2 		4.56
5.43
6.30 		7.5 50
54
52 		7.9
7.6
7.2 		2.58
2.66
3.16
8 9.0
12.6
16.2 		2.5
3.5
4.5 		106.4
97.6
84.8 		5.22
6.20
7.20 		7.5 50
54
52 		7.9
7.6
7.2 		2.58
2.66
3.16
9 9.0
12.6
16.2 		2.5
3.5
4.5 		119.7
109.8
95.4 		5.87
6.98
8.10 		11 50
54
52 		7.9
7.6
7.2 		2.58
2.66
3.16
10 9.0
12.6
16.2 		2.5
3.5
4.5 		133
122
106 		6.52
7.75
9.00 		11 50
54
52 		7.9
7.6
7.2 		2.58
2.66
3.16

Model

Stage

Capacity

Total head(m) Speed(r/min) Power(Kw) Efficiency
(%) 		Suction height(m) (NPSH)r(m)
m3/h l/s Shaft Motor
65DL 2 18
30
35 		5
8.33
9.72 		37
32
29 		1450 3.24
4.22
4.6 		5.5 56
62
60 		7.8
7.6
7.5 		2.41
2.82
3.03
3 18
30
35 		5
8.33
9.72 		55.5
48
43.5 		4.86
6.33
6.9 		7.5 56
62
60 		7.8
7.6
7.5 		2.41
2.82
3.03
4 18
30
35 		5
8.33
9.72 		74
64
58
 		6.48
8.44
9.2 		11 56
62
60 		7.8
7.6
7.5 		2.41
2.82
3.03
5 18
30
35 		5
8.33
9.72 		92.5
80
72.5 		8.1
10.55
11.5 		15 56
62
60 		7.8
7.6
7.5 		2.41
2.82
3.03
6 18
30
35 		5
8.33
9.72 		111
96
87 		6.72
12.66
13.8 		15 56
62
60 		7.8
7.6
7.5 		2.41
2.82
3.03
7 18
30
35 		5
8.33
9.72 		129.5
112
101.5 		11.34
14.77
16.1 		18.5 56
62
60 		7.8
7.6
7.5 		2.41
2.82
3.03
8 18
30
35 		5
8.33
9.72 		148
128
116 		12.96
16.88
18.4 		22 56
62
60 		7.8
7.6
7.5 		2.41
2.82
3.03
9 18
30
35 		5
8.33
9.72 		166.5
144
130.5 		14.58
18.99
20.7 		22 56
62
60 		7.8
7.6
7.5 		2.41
2.82
3.03
10 18
30
35 		5
8.33
9.72 		185
160
145 		16.2
21.1
23 		30 56
62
60 		7.8
7.6
7.5 		2.41
2.82
3.03

Model

Stage

Capacity

Total head(m) Speed(r/min) Power(Kw) Efficiency
(%) 		Suction height(m) (NPSH)r(m)
m3/h l/s Shaft Motor
80DL 2 32.4
50.4
65.16 		9
14
18.1 		43.2
40
34.2 		1450 6.28
7.84
9.12 		11 60.7
70
66.5 		8.1
8
7.9 		2.16
2.49
2.82
3 32.4
50.4
65.16 		9
14
18.1 		64.8
60
51.3 		9.42
11.76
13.68 		15 60.7
70
66.5 		8.1
8
7.9 		2.16
2.49
2.82
4 32.4
50.4
65.16 		9
14
18.1 		86.4
80
68.4 		12.56
15.68
18.24 		22 60.7
70
66.5 		8.1
8
7.9 		2.16
2.49
2.82
5 32.4
50.4
65.16 		9
14
18.1 		108
100
85.5 		15.70
19.60
22.80 		30 60.7
70
66.5 		8.1
8
7.9 		2.16
2.49
2.82
6 32.4
50.4
65.16 		9
14
18.1 		129.6
120
102.6 		18.84
23.52
27.36 		30 60.7
70
66.5 		8.1
8
7.9 		2.16
2.49
2.82
7 32.4
50.4
65.16 		9
14
18.1 		151.2
140
119.7 		21.98
27.44
31.92 		37 60.7
70
66.5 		8.1
8
7.9 		2.16
2.49
2.82
8 32.4
50.4
65.16 		9
14
18.1 		172.8
160
136.8 		25.12
31.36
36.48 		45 60.7
70
66.5 		8.1
8
7.9 		2.16
2.49
2.82
9 32.4
50.4
65.16 		9
14
18.1 		194.4
180
153.9 		28.26
35.28
41.04 		45 60.7
70
66.5 		8.1
8
7.9 		2.16
2.49
2.82
10 32.4
50.4
65.16 		9
14
18.1 		216
200
171 		31.40
39.20
45.60 		55 60.7
70
66.5 		8.1
8
7.9 		2.16
2.49
2.82

Model

Stage

Capacity

Total head(m) Speed(r/min) Power(Kw) Efficiency
(%) 		Suction height(m) (NPSH)r(m)
m3/h l/s Shaft Motor
100DL 2 72
100
126 		20
27.8
35 		43.4
40
34 		1450 13.1
15.14
16.67 		18.5 65
72
70 		7.6
7.2
6.7 		2.83
3.53
4.40
3 72
100
126 		20
27.8
35 		65.1
60
51 		19.65
22.72
25.01 		30 65
72
70 		7.6
7.2
6.7 		2.83
3.53
4.40
4 72
100
126 		20
27.8
35 		86.8
80
68 		26.2
30.28
33.34 		37 65
72
70 		7.6
7.2
6.7 		2.83
3.53
4.40
5 72
100
126 		20
27.8
35 		108.5
100
85 		32.75
37.86
41.68 		45 65
72
70 		7.6
7.2
6.7 		2.83
3.53
4.40
6 72
100
126 		20
27.8
35 		130.2
120
102 		39.3
45.39
45.82 		55 65
72
70 		7.6
7.2
6.7 		2.83
3.53
4.40
7 72
100
126 		20
27.8
35 		151.9
140
119 		25.85
53.0
58.35 		75 65
72
70 		7.6
7.2
6.7 		2.83
3.53
4.40
8 72
100
126 		20
27.8
35 		173.6
160
136 		52.4
60.57
66.68 		75 65
72
70 		7.6
7.2
6.7 		2.83
3.53
4.40
9 72
100
126 		20
27.8
35 		195.3
180
153 		58.95
68.14
75.02 		90 65
72
70 		7.6
7.2
6.7 		2.83
3.53
4.40
10 72
100
126 		20
27.8
35 		217
200
170 		65.5
75.71
83.35 		90 65
72
70 		7.6
7.2
6.7 		2.83
3.53
4.40

Model

Stage

Capacity

Total head(m) Speed(r/min) Power(Kw) Efficiency
(%) 		(NPSH)r(m)
m3/h l/s Shaft Motor
150DL 2 120
160
200 		33.3
44.4
55.6 		53
50
44 		1450 24.1
28.7
32.8 		37 72
76
73 		3.1
3.5
3.8
3 120
160
200 		33.3
44.4
55.6 		79.5
75
66 		36.1
43.0
49.2 		55 72
76
73 		3.1
3.5
3.8
4 120
160
200 		33.3
44.4
55.6 		106
100
88 		48.1
57.3
65.7 		75 72
76
73 		3.1
3.5
3.8
5 120
160
200 		33.3
44.4
55.6 		133
125
110 		60.1
71.7
82.1 		90 72
76
73 		3.1
3.5
3.8
6 120
160
200 		33.3
44.4
55.6 		159
150
132 		72.2
86.0
98.5 		110 72
76
73 		3.1
3.5
3.8
7 120
160
200 		33.3
44.4
55.6 		186
175
154 		84.2
100
115 		132 72
76
73 		3.1
3.5
3.8
8 120
160
200 		33.3
44.4
55.6 		212
200
176 		96.2
115
132 		132 72
76
73 		3.1
3.5
3.8
9 120
160
200 		33.3
44.4
55.6 		239
225
198 		108
129
148 		160 72
76
73 		3.1
3.5
3.8
