Crimping Machine, Crimper, Wire/Cable Crimping Machine/ Wire Crimping Equipment
$5000.00 /set
Product Details
Transaction Comments
Basic Info
- Model NO.: BW-1.0GF
- Condition: New
- Warranty: 24 Months
- Terminal Crimping Output: 18,000PCS/H
- Transport Package: Wooden Packing
- Driven Type: Pneumatic
- Certification: CCC, ISO, CE
- Automatic Grade: Semiautomatic
- Trademark: BOZWANG
- Origin: Changzhou
Product Description

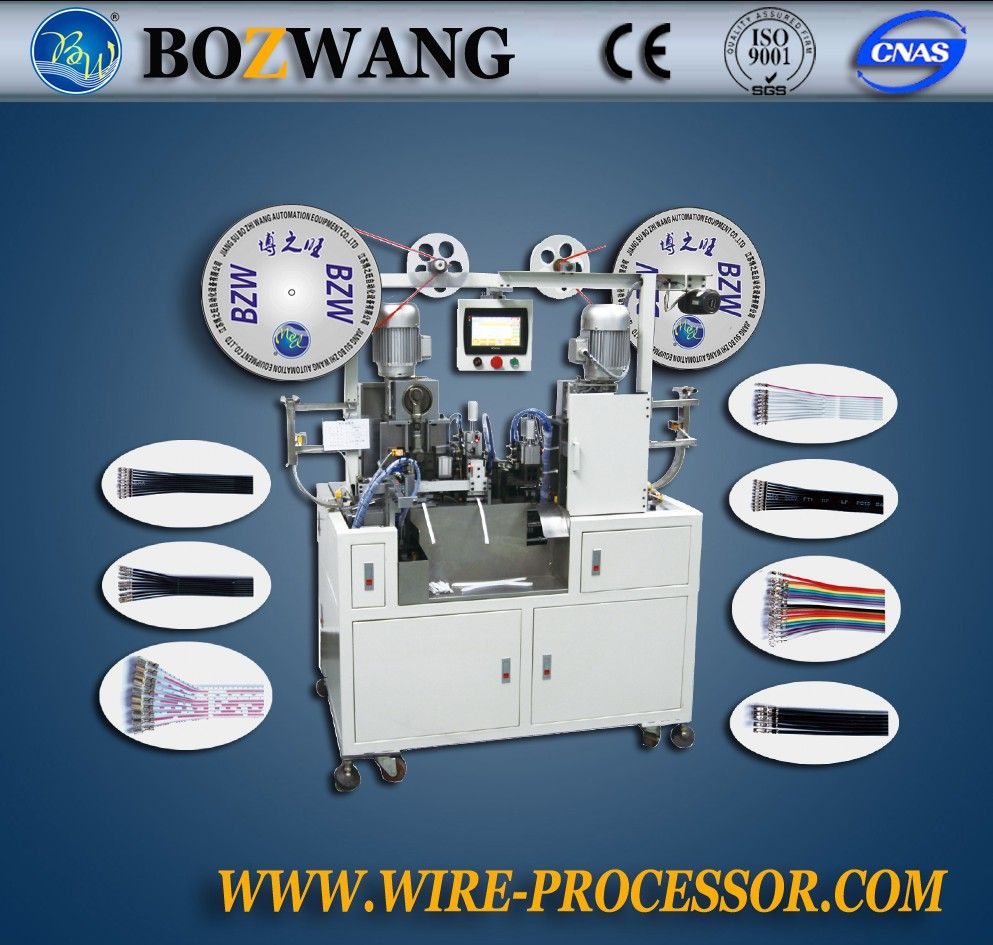

Crimping machine, crimper, wire/cable crimping machine/equipment :
It is a multi-functional automatic terminal crimping machine integrated with feeding, cutting, stripping and crimping.
Main application:
Mainly used for crimping terminal of flat cable, such as PH, XH, EH, ZH color communication wire, and bar-shaped connector of SCW,SM,VH,DUPON,
Features:
1. Stable performance
2. High precision
3. Full automatic
4. Less space occupation
5. Simple operation
Technical parameters:
It is a multi-functional automatic terminal crimping machine integrated with feeding, cutting, stripping and crimping.
Main application:
Mainly used for crimping terminal of flat cable, such as PH, XH, EH, ZH color communication wire, and bar-shaped connector of SCW,SM,VH,DUPON,
Features:
1. Stable performance
2. High precision
3. Full automatic
4. Less space occupation
5. Simple operation
Technical parameters:
1.Applicable wire: all kinds of wire
2.The max.P wire row: 20 P
3.The max.Width wire displacement: 28 mm
4.The width range of the single wire: 0.8-2.5mm
5.Cutting length: 72-9999mm
6.Cutting precision: ±0.5mm
7.Stripping length on the two ends: 2-10mm
8.Working capacity: 18000 PCS/H (20P wire rows)
9.Function: single terminal crimping, double terminals crimping, interval crimping, front and rear crimping.
10.Die: changeable
11.Working pressure: 0.4-0.6 mpa, the air source should be filtered and dried.
12.Voltage: 220V 50Hz
13.Rated current: 15A
14.Power: 3300W
15.Outer dimension: 1.85m x 0.76m x 1.83m
16.Weight: 527 kg
17.Occupied area: 2 x 2.5m
