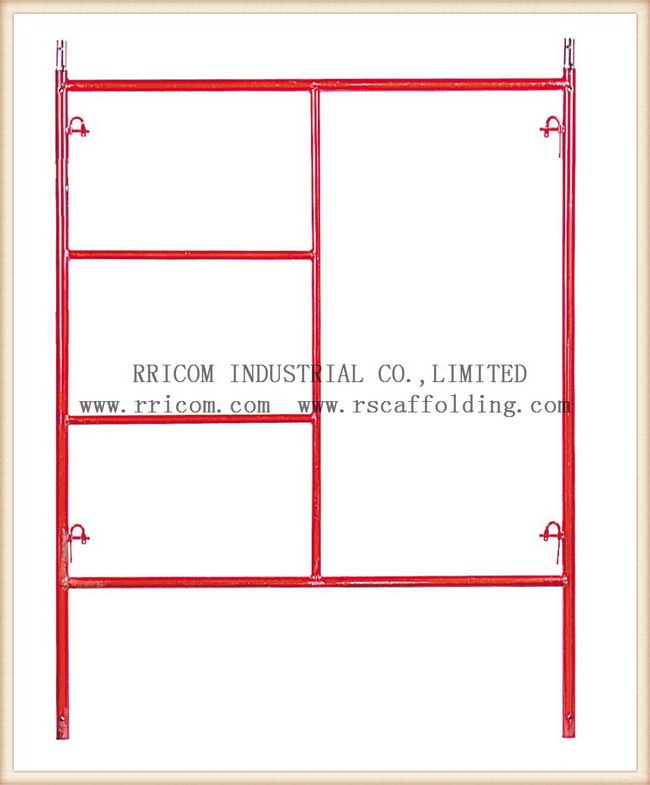

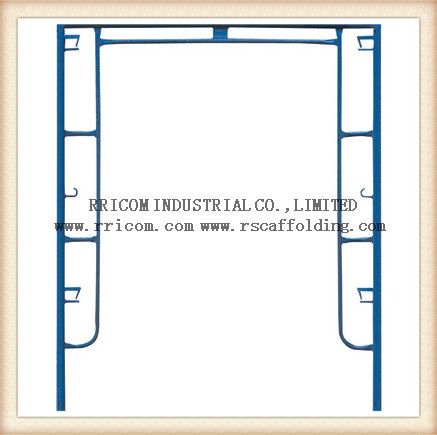

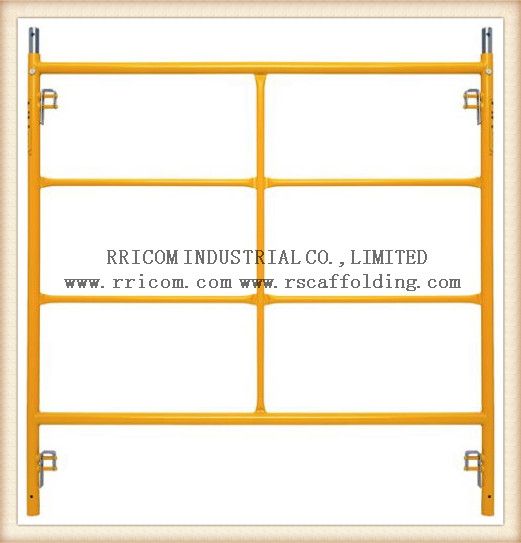

Carbon Steel Scaffold System Frame for Construction
$15.00 /piece
Product Details
Transaction Comments
Basic Info
- Model NO.: RSFF006
- Type: Mobile and Fixed
- Framework: Frame Combined Scaffolding
- Lapping Form: Double Scaffolding
- Move Method: Attached Lifting Scaffolding
- Construction Properties: Building Scaffold
- Trademark: RRICOM
- Specification: QEC, CQC, CE, ISO. ASTM
- HS Code: 73084000
- Material: Steel
- Structural Style: Tower Scaffolding
- Supporting Mode: Projecting Scaffolding
- Erection Position: External Scaffolding
- Scaffolding Part Type: Scaffolding Frames
- Ourter Tube:42.7X2.3 /.4mm: Inner Tube:32X1.5/1.8/2.0mm
- Transport Package: Pallets
- Origin: Rizhao of China
Product Description
1)Type:S-Style & W-Style.
2)Specification:HxW(standpine: Φ42.7mmxΦ2.3/2.4mm,inner pine:Φ32mmxΦ2.0mm)
3)Asia Standard:1700mmX914.4(3′)(15.46kgs)
4)Form
| Euro Standard | Asia Standard(mm) | Weight(KGS) |
| 6'4''x3' | 1930.4×914.4 | 17.50 |
| 6'4''x4' | 1930.4×1219.4 | 18.42 |
| 6'4''x5' | 1930.4×1524 | 19.88 |
| 6'4''x3'6'' | 1930.4×1066.8 | 18.08 |
| 6'7''x5' | 2006.6×1524 | 21.41 |
| 6'7''x3' | 2006.6×914.4' | |
| 5'1''x3' | 1549.4×914.4 | |
| 6'4''x42'' | 1930.4×1066.8 |
Note:
1)color:painting,powder coated/electroplated/zinc plated/ galvanized/hot-dip galvanized
2)The weight of frames will be increase 5%-8% after hot dip galvanized
3)The normal adaptive capatity of the frame about 9.8KN(10tons)
