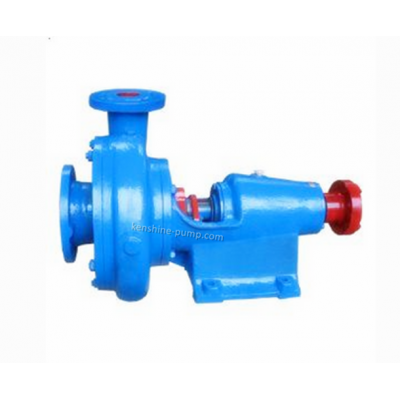

CB series centrifugal pump is composed of impeller, pump body bearing body, seal and other components and with inlet and outlet components. It is produced in strict accordance with JB/T 6663.1-93 and JB/T 6663.1-93 standards.
CB Centrifugal pump has the advantages of small size, light weight, compact structure, excellent and reliable performance and convenient operation and maintenance and movement.
Application
CB series centrifugal pumps are widely used in irrigation and drainage of farmland, sprinkling irrigation, landscaper sprinkling irrigation, well water drawing, domestic water drawing, industrial and mining enterprises, municipal engineering water supply and drainage and other occasions.
Operation Conditions:
1. Medium temperature shall not exceed 40 degree Celsius.
2. PH value of the medium is between 5.5 and 8.5;
3. The medium shall be clean water without solid impurities (the volume of solid impurities in the medium shall not exceed 0.1percent and the particle size shall not be greater than 0.2mm).
| Model | Flow (m3/h) | Head (m) | Inlet/outlet(inch) | Suction height (m) | Spee (r/min) | Power (kw/hp) | Remarks |
|
|
|
|
（mm） |
|
|
|
|
| CB50-15 | 15 | 15 | 2”*2” | 7-9 | 2600 | 1.5/2 |
|
|
|
17 | 19 |
|
7-9 | 2900 | 41308 |
|
| CB50-19 | 18 | 15 | 2”*2” | 7-9 | 2600 | 41308 |
|
|
|
20 | 19 |
|
7-9 | 2900 | 2.2/3 |
|
| CB50-50-130 | 15 | 20 | 2”*2” | 7-9 | 2600 | 1.5/2 |
|
|
|
17 | 25 |
|
7-9 | 2900 | 2.2/3 |
|
| CB50-50-150 | 22 | 20 | 2”*2” | 7-9 | 2600 | 41308 |
|
|
|
25 | 25 |
|
7-9 | 2900 | 2.6/4 |
|
| CB65-65-125 | 27 | 12 | 2.5”*2.5” | 7-9 | 2600 | 2.2/3 |
|
|
|
30 | 15 |
|
7-9 | 2900 | 2.2/3 |
|
| CB65-55 | 32 | 44 | 2.5”*2.5” | 7-9 | 2600 | 6.5/9 | with hand pressure |
|
|
36 | 55 |
|
7-9 | 2900 | 8.8/12 |
|
| CB80-28 | 54 | 23 | 3”*3” | 7-9 | 2000 | 5.5/8 | Thailand |
|
|
60 | 28 |
|
7-9 | 2200 | 7.5/10 |
|
| CB80-31 | 45 | 25 | 3”*3” | 7-9 | 2600 | 4.4/6 |
|
|
|
50 | 31 |
|
7-9 | 2900 | 5.97/8 |
|
| CB80-80-130 | 50 | 14 | 3”*3” | 7-9 | 2600 | 41337 |
|
|
|
54 | 23 |
|
7-9 | 2900 | 5.5/8 |
|
| CB80-40 | 45 | 25 | 3”*3” | 7-9 | 2600 | 4.4/6 |
|
|
|
50 | 31 |
|
7-9 | 2900 | 4.4/6 |
|
| CB80-65-135 | 45 | 16 | 3”*2.5” | 7-9 | 2600 | 4.0/6 | with hand pressure |
| (CB80-80-125) |
|
|
|
|
|
|
|
| (CB80-20) | 50 | 20 | 3”*3” | 7-9 | 2900 | 5.5/8 |
|
| CB80-55 | 54 | 44 | 3”*3” | 7-9 | 2600 | 9.5/13 | with hand pressure |
|
|
60 | 55 |
|
7-9 | 2900 | 13.2/18 |
|
| CB80-65-205 | 50 | 45 | 3”*2.5” | 7-9 | 2900 | 8.8/11 | with hand pressure |
|
|
55 | 55 |
|
7-9 | 2900 | 41593 |
|
| CB100-40 | 70 | 28 | 4”*4” | 7-9 | 2600 | 8.5/12 |
|
|
|
80 | 35 |
|
7-9 | 2900 | 11.8/16 |
|
| CB100-100-125 | 90 | 10 | 4”*4” | 7-9 | 2600 | 4.0/6 |
|
|
|
100 | 12.5 |
|
7-9 | 2900 | 5.5/8 |
|
| CB100-100-135 | 90 | 10 | 4”*4” | 7-9 | 2600 | 4.0/6 |
|
|
|
100 | 12 |
|
7-9 | 2900 | 5.5/8 |
|
| CZK150-100 | 66.6 | 10.5 | 6”*5” | 7-9 | 980 | 41337 | Afghanistan |
|
|
98 | 23 |
|
7-9 | 1450 | 41593 |
|
| CB150-150-200 | 180 | 8 | 6”*6” | 5.5-6.5 | 1450 | 5.15/7 |
|
