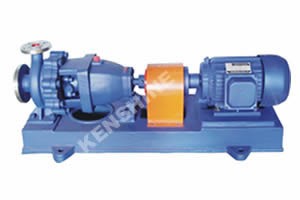

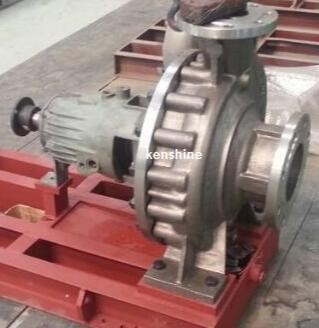

BWH series chemical heat preservation pump
Pump introduction:

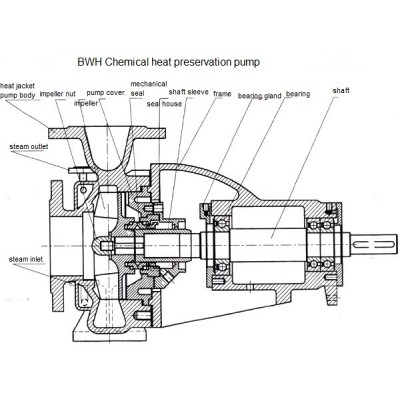

BWH series chemical heat preservation pump is a kind of single stage single suction centrifugal pump with heat preservation jacket. It is improved on the basis of general chemical pump and mainly suitable for conveying the medium at low temperature and easy crystallization or the medium with constant temperature. The pump can use steam or hot water for heat preservation.
As the advanced and scientific and unique pump structure and sealing
According to the different media can use different materials to produce this pump, currently usually A3, 321, 304, 316, 316L, duplex stainless steel and other materials
Performance Range:
Flow rate: 1.6-400 m3 / h
Head: 5-125 - m
Size: 25 - ф ф 200 mm
Specification sheet:
technology, the pump can transport the medium with solid content up to 35%. Under normal conditions, the pump works for 8000 hours without leakage, which is 3-5 times of the sealing effect of general chemical pump. Because the impeller is open structure, it will not be blocked due to the high solid content of the medium. The pump is the most ideal advanced equipment for conveying insulation materials needed by the chemical industry.
Pump model
Flow rate
Head
Effiiciency
NPSH
Motor power
Speed
m3/h
m
%
m
Kw
r/min
BWH25-25-125
3.2
20
53
2
1.1
2900
1.6
5
45
2
0.55
1450
BWH25-25-160
3.2
32
46
2
2.2
2900
1.6
8
40
2
0.55
1450
BWH25-25-200
3.2
50
38
2
4
2900
1.6
12.5
33
2
0.75
1450
BWH25-25-250
3.2
80
33
2
5.5
2900
1.6
20
27
2
1.5
1450
BWH40-32-125
6.3
20
52
2
2.2
2900
3.2
5
46
2
0.55
1450
BWH40-32-160
6.3
32
47
2
3
2900
3.2
8
42
2
0.75
1450
BWH40-32-200
6.3
50
38
2
5.5
2900
3.2
12.5
38
2
0.75
1450
BWH40-32-250
6.3
80
32
2
7.5
2900
3.2
20
35
2
1.5
1450
BWH50-32-125
12.5
20
51
2
3
2900
6.3
5
45
2
0.55
1450
BWH50-32-160
12.5
32
46
2
4
2900
6.3
8
40
2
0.75
1450
BWH50-32-200
12.5
50
39
2
7.5
2900
6.3
12.5
33
2
1.1
1450
BWH50-32-250
12.5
80
33
2
15
2900
6.3
20
27
2
2.2
1450
BWH65-50-125
25
20
62
2
3
2900
12.5
5
55
2
0.55
1450
BWH65-50-160
25
32
57
2
5.5
2900
12.5
8
51
2
1.1
1450
BWH65-40-200
25
50
52
2
11
2900
12.5
12.5
46
2
1.5
1450
BWH65-40-250
25
80
46
2
18.5
2900
12.5
20
39
2
3
1450
BWH65-40-315
25
125
39
2
30
2900
12.5
32
33
2
5.5
1450
BWH80-65-125
50
20
69
2
5.5
2900
25
5
64
2
1.1
1450
BWH80-65-160
50
32
67
2
11
2900
25
8
62
2
1.5
1450
BWH80-50-200
50
50
63
2
15
2900
25
12.5
57
2
2.2
1450
BWH80-50-250
50
80
57
2
30
2900
25
20
53
2
4
1450
BWH80-50-315
50
125
48
2
45
2900
25
32
43
2
7.5
1450
BWH100-80-125
100
20
77
4.3
11
2900
50
5
73
3
1.5
1450
BWH100-80-160
100
32
73
4.3
15
2900
50
8
72
3
3
1450
BWH100-65-200
100
50
72
4.3
30
2900
50
12.5
68
3
4
1450
BWH100-65-250
100
80
68
4.3
55
2900
50
20
65
3
5.5
1450
BWH100-65-315
50
32
58
3
11
1450
BWH125-100-200
200
50
77
4.3
45
2900
100
12.5
72
3
7.5
1450
67
6
71
2.5
4
980
BWH125-100-250
200
80
75
4.3
75
2900
100
20
72
2.3
11
1450
67
9
71
2.5
5.5
980
BWH125-100-315
100
32
68
2.5
18.5
1450
67
15
67
2.5
7.5
980
BWH125-100-400
100
50
60
2.5
30
1450
67
23
59
2.5
11
980
BWH150-125-250
200
20
77
2.8
18.5
1450
135
9
76
2.5
7.5
980
BWH150-125-315
200
32
75
2.8
30
1450
135
15
74
2.5
11
980
BWH150-125-400
200
50
70
2.5
45
1450
135
23
69
2.5
18.5
980
BWH200-150-250
400
20
81
4
37
1450
270
10
80
2.8
11
980
BWH200-150-315
400
32
79
3.5
55
1450
270
15
79
2.8
18.5
980
BWH200-150-400
400
50
78
3.5
90
1450
270
23
78
2.8
30
980
