- Model NO.: HSQ3018U
- Process Usage: Metal-Cutting CNC Machine Tools
- Control Method: Closed-Loop Control
- Performance Classification: High-End CNC Machine Tools
- Model: Ay3018u
- Travel Speed: 0-10m/Min
- Repeated Orientation Accuracy: 0.02mm
- Dynamo: Simens
- Nc System: Win7; XP
- Trademark: Aoyu
- Origin: Anhui Province, China
- Application: Glass
- Movement Method: Contour Control
- Numerical Control: CNC/MNC
- Certification: GS, SGS, CE, ISO 9001
- Xy-Axis Max.Travel: 180mm*3000mm
- Cutting Precision: 0.1~0.2mm
- Drive System: Japan Yaskawa
- Max. Cutting Pressure: 420MPa
- Working Voltage: 220/380/415V AC, 50/60Hz
- Specification: ISO
- HS Code: 84648010
Name:
5-axis 6000psi 304 Stainless Steel CNC Water Jet Stone Cutting Machine for Medallion Design
5-axis 50HP Water Jet Stone Cutting Machine for Floor/ Tiles Medallion Design
5-axis Waterjet Stone Cutting Machine with CE, ISO, SGS
5-axis CNC Water Jet Cutting Machine for Stone Cutting
CNC Waterjet Machine for Granite, Limestone, Marble Cutting
Waterjet Cutting Machine for Metal Cutting
Water Jet Metal Cutting Machine

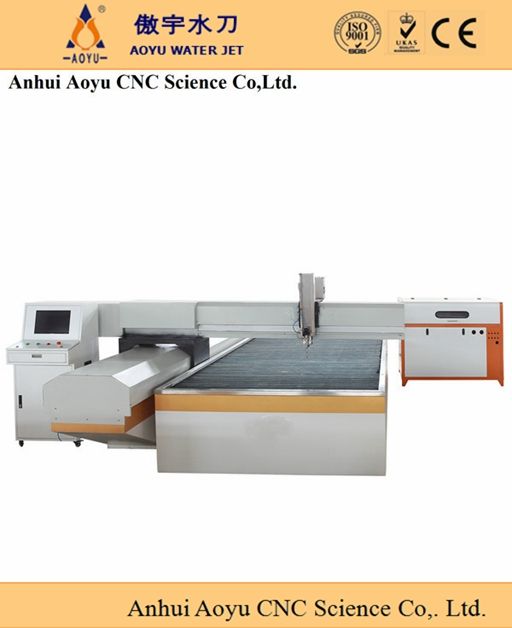

5-axis Waterjet Cutting Machine Quick Details:
Model |
HSQ4020U |
|
Travel |
XY-axis |
2000mm*4000mm |
Z-axis |
150mm |
|
Dynamo |
Siemens |
|
Drive |
AC Servo System |
|
NC System |
Win7 |
|
Rotary axis B |
±270° |
|
Rotary axis C |
±60° |
|
Rotary axis C Max. Speed |
180°/sec |
|
Angle Accuracy |
±0.2° |
|
Repeat Angle Accuracy |
±0.2° |
|
Max.Cutting Pressure |
420Mpa |
|
Please contact us for more models and OEM service. | ||

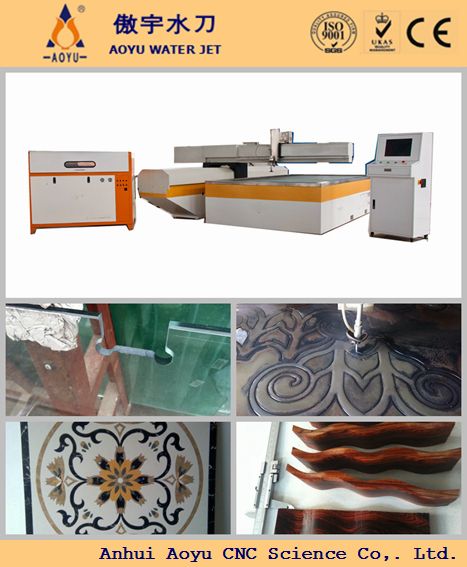

5-axis Waterjet Cutting Machine Application
Our 5axis Waterjet Stone Cutting Machine can cut both natural and manmade stones, including granite, marble, limestone, quartz, ceramic and so on.
With the function of CNC, our 5axis waterjet stone cutting machine can cut dedicated floor
pattern.
Other Materials 5-axis Water Jet Cutting Machine can cut:
Metals: steel, stainless steel, aluminum, copper, alloy, titanium etc.

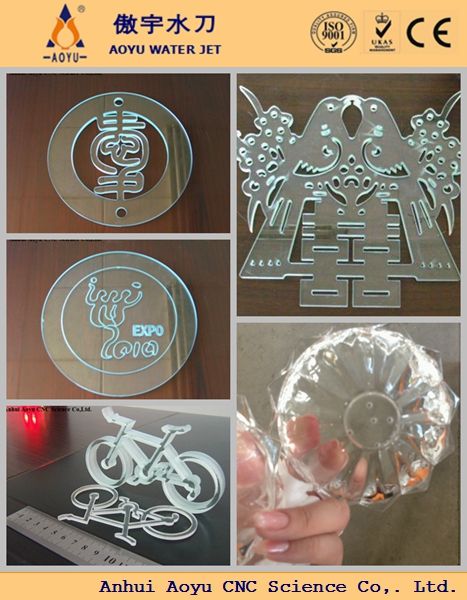

Nonmetals: stones, mosaic/floor tiles, marble, granite, quartz, limestone, ceramic, glass, concrete, rubber, leather, wood, food etc.
Composite: alloy steel, carbon structural steel, plastic etc.
Our 5-axis Waterjet Cutting Machine Features
1. low pressure piercing protects the delicate stone;
2. CAD design makes the intricate stone medallion design easy;
3. fine cutting edge, no need second polishing;
4. high cutting precision.
Price & Delivery:
Item: CNC Water Jet Cutting Machine
FOB Shanghai: price range 28,000-100,000 USD, which is subject to our final confirmation.
MOQ: 1 set
Term of Payment: T/T 30% deposit; T/T70% against B/L copy.
Term of Shipment: by sea with 20 ft standard container
Weight: 8 tons
HS Code: 8464901100
Brand Name: Aoyu
Warranty: one year
Technician Support: Free field training and installation is available. Please contact us for details.
