- Model NO.: YGB128-2-3
- Condition: New
- Thickness of Quilting: 25 mm
- Gross Weight: 5300 Kg
- Needle Rows: 2 Rows
- Trademark: YuTeng Machinery
- Specification: L5300*W1200*H1800mm
- Certification: CE, ISO9001: 2000
- Width of Quilting: 330 Cm
- Total Power: 5kw
- Space Between Needle: 25.4mm
- Machine: Quilting Sewing Machine
- Transport Package: Film Packing
- Origin: China

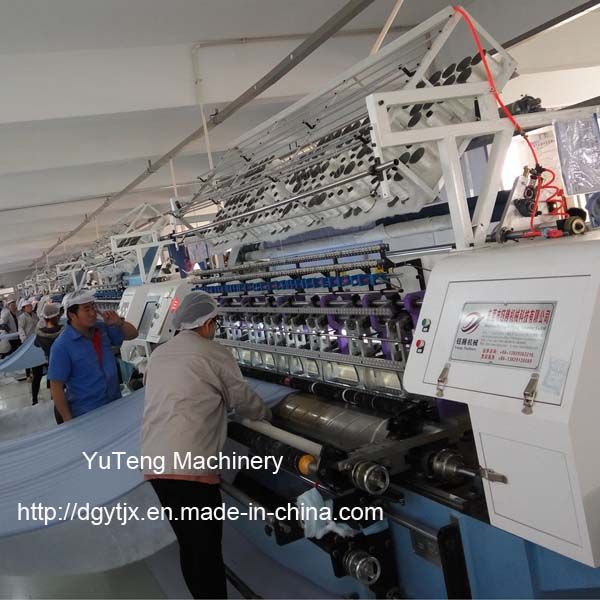

Automatic Textile Quilting Sewing Machine YGB128-2-3
Purpose: This Textile Quilting Sewing Machine is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.
Technical Specification:
| Model | YGB64-2-3 | YGB76-2-3 | YGB96-2-3 | YGB128-2-3 |
| Size(L*W*H)(mm) | 3800*1100*1800 | 4000*1100*1800 | 4900*1100*1800 | 5700*1100*1800 |
| quilting width | 64inch | 76inch | 96inch | 128inch |
| quantity of needle bar | 2 | 2 | 2 | 2 |
| space between needle bar | 76.2mm | 76.2mm | 76.2mm | 76.2mm |
| space between needle | 25.4mm | 25.4mm | 25.4mm | 25.4mm |
| X-axis movement | 254mm | 254mm | 254mm | 254mm |
| thickness of quilting | ≤25mm | ≤25mm | ≤25mm | ≤25mm |
| speed of operation(m/hour) | 20-120 | 20-120 | 20-120 | 20-120 |
| model of needle | 16 #, 19 # | 16 #, 19 # | 16 #, 19 # | 16 #, 19 # |
| stitch length | 2-6mm | 2-6mm | 2-6mm | 2-6mm |
| quilting speed(r/min) | 300-800 | 300-800 | 300-800 | 300-800 |
| Voltage | 380V/220V/50HZ | 380V/220V/50HZ | 380V/220V/50HZ | 380V/220V/50HZ |
| Total power | 3.5Kw | 3.5Kw | 4Kw | 5.5Kw |
| gross weight | 3300Kg | 3500Kg | 4500Kg | 5300Kg |
Machine Main Features:
1. Adjusted speed by computer and the speed can reach 800r/min.
2.The needle bar running adopt aluminum alloy needle bar frame structure, don't need to add extra lube, strong and durable.
3. Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4. 360° random quilting and limitless multi-span and independent quilting.
5.Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
6. Infrared sensor makes the operation more secure.
7.can do 64inch,76inch,96inch,128inch width fabric quilt
8.Computerized choose quilt design,have 200 pcs designs are save in computer of machine
9.Computerized quilting machine is better than cam quilting machine
10.Machine can do bedding pads quilt,winter quilt,hom textile quilt,jackets quilt,garments quilt
Loading and Shipping Machines:
Company Exhibition:
After-sale Service:
1.Warranty: machine warranty is one year
2.If need,we can arrange one technician to customer's country install machines
