Automatic Paper Edge Board Making Machine
$30000.00 /piece
Product Details
Transaction Comments
Basic Info
- Model NO.: BS-PM17
- Type: High-Speed Slitting Machine
- Structure: Cutting Part
- Classification: Paper Cutting Machine
- Suitable Substrates: Paper
- Delivery Time: 30-45days
- OEM: Yes
- Width Range: 15-80mm
- Trademark: BIGSEVEN OR OEM
- Specification: Customized
- HS Code: 844180900
- Application: Mechinery&Hardware
- Work Method: Flat Knife Slitting
- Packaging: Cartons
- Applicable Process: Process Materials
- Packaging Material: Paper
- Fob Port: Qingdao
- Power: 380V/410V/440V/ 29-31kw
- Thickness: 1-10mm
- Transport Package: Standard Export Packing
- Origin: Shandong, China
Product Description
Paper Edge Protector Machinery for Asia Market
DESCRIPTION OF CARDBOARD EDGE PROTECTOR MACHINE
1. fastest: 45m/min, some of our international customers run at 52-60m/min for their hight quality of paper
2. Thickness or cliper: 1.0-10mm
3. Wing width: 15-120mm
4. shortest online cutting: 50mm
5. Overall size: 27*1.3*1.6m
6. Power: 29-31kw
7. Voltage: 380V/410V-440V, customerization
| Model | BS-PC01 |
| L protector size(mm) | 12-80 (can be symmetrical and assymetrical) |
| Thickness(mm) | normally 3-6mm, special order for max thickness of 10mm |
| Applicable inner paper | 360-600g/m2 fluting paper or corrugating medium paper |
| Applicable surface paper | 175-250gsm craft paper |
| Core diameter of paper roll | 3" (76mm) (4" or other size must be confirmed when making order) |
| Max. quantity of Layer | 12 |
| Max. speed | 50m/minfor length not smaller than 800mm. |
| Control system | PLC, servo motor, Touch screen (HIM) with automatic alarm and failure notice, easy for operation and adjustment. With output counting. |

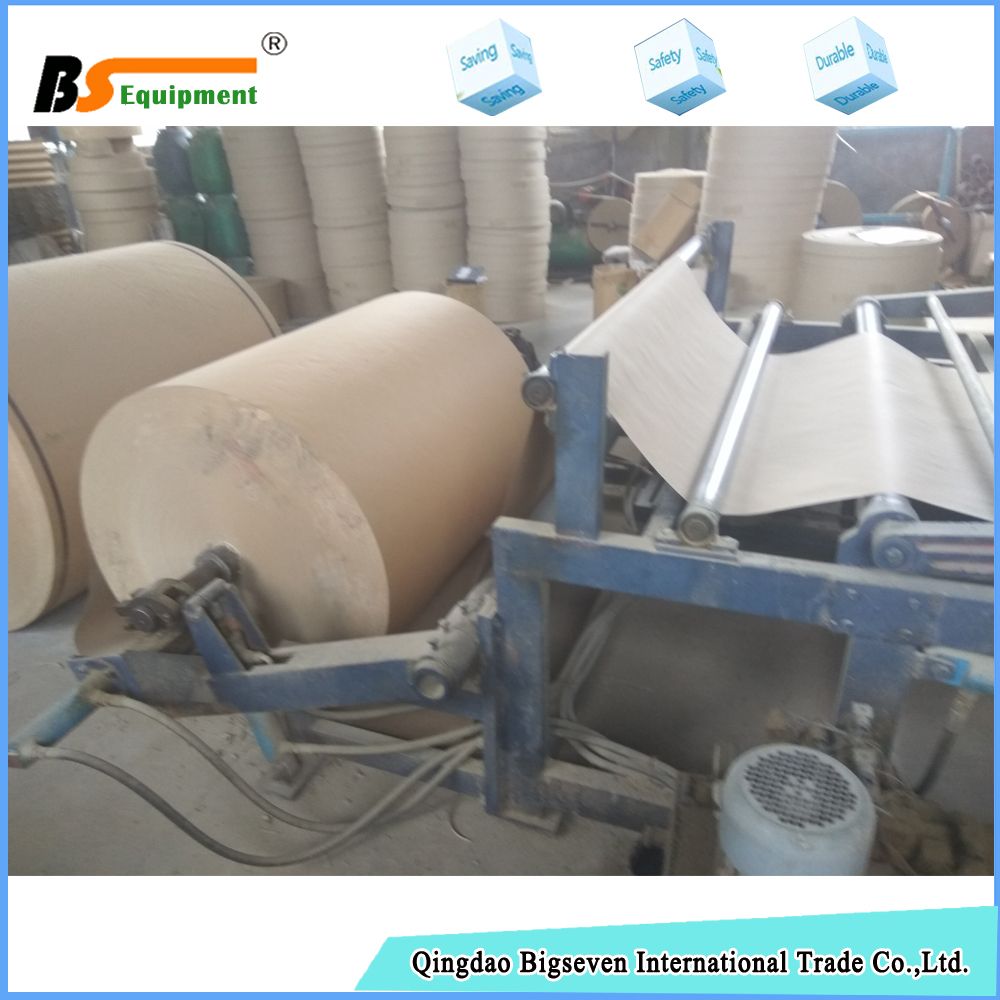

| Paper stands | Suspended stands with hoist for inner paper paper. |

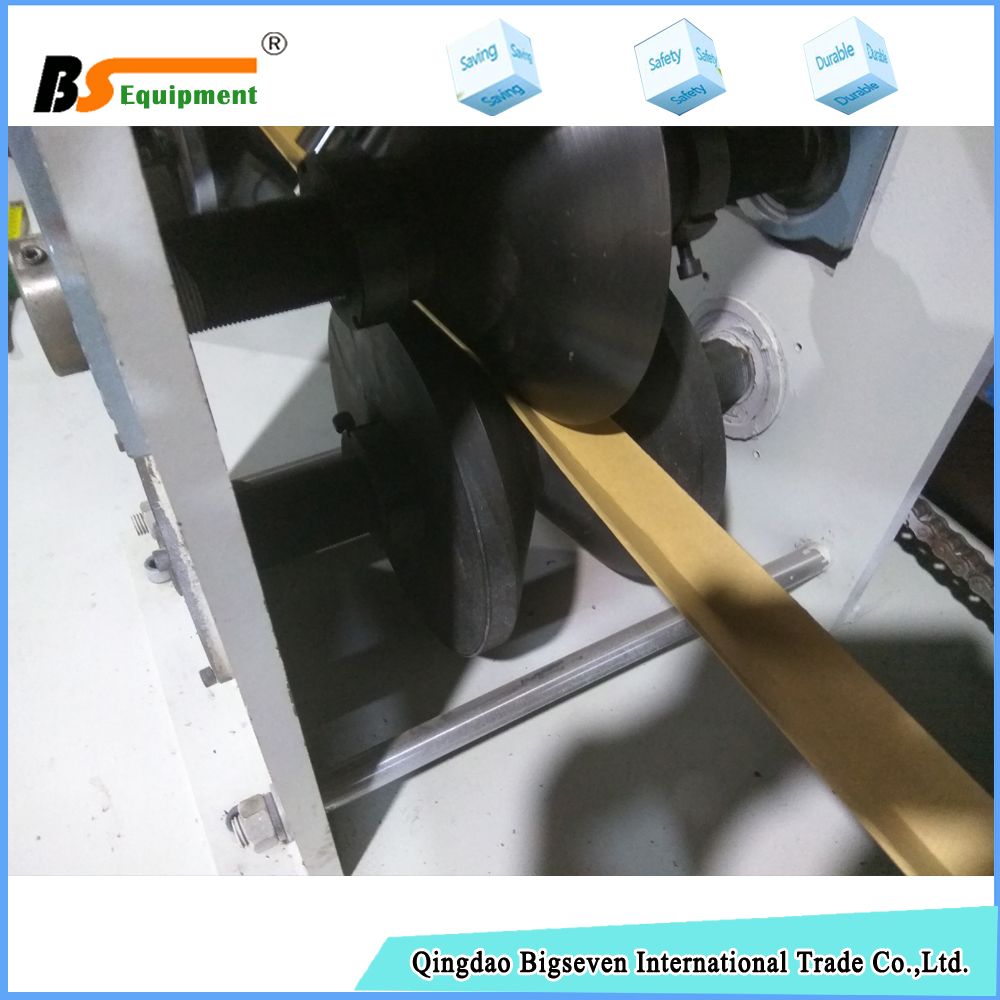

| Forming wheels | chamber hanging type, easy to change moulds |
| Method to load paper roll | Load inner paper rolls by hoist (along with machine). Load surface paper roll by hydraulic manual car (buy by the buyer) which is also required to move jumbo paper roll. No need to stop machine when loading paper rolls. |
| Applicable paper roll diameter | max. 1300mm |
| Paper feeding and compounding | Step type with complex structure |
| Gluing system | Cascade type gluing system |
| Glue heating | electrical heating with temperature control system |
| Glue feeding | Automatic feedingby diaphragm pump |
| Pressing adjustment | Pneumatic pressing to protect paper and easier operation |
| Protector heating | electrical heating |
| Cut method | Hydraulic cutting |
| Quantity of cutter | 1 |
| Moving of cutting head | servo motor controlled by PLC |
| Min cut length | 10 cm |
| Cut tolerance | ± 1mm |
| Stacker | Automatic stacking |
| Motor for forming section | two motors with inverter, with high power, direct-connected reducing motor |
| Power supply | Motor power: 10KW protector heating power: 6.5KW (normally for winter) glue heating power: 4.5KW (normally for winter) |
| Air supply | 0.6Mpa, 0.1m3 |
| Total weight(MT) | 4.5 |
| Dimension(m) | 24.5× 2.3× 4 OR CUSTOMIZED |
| Operator | 1-2 workers |
| Required container | One 40" container |
