Automatic Honeycomb Paper Core & Paperboard Making Machine
$100000.00 /piece
Product Details
Transaction Comments
Basic Info
- Model NO.: ZDFW-1600
- Usage: Packing Paper Machine, Packing Products
- Computerized: Yes
- Transport Package: Seaworthy Package
- Process: Finishing Process Machine
- Automatic Grade: Automatic
- Trademark: COMEQ
- Origin: China
Product Description

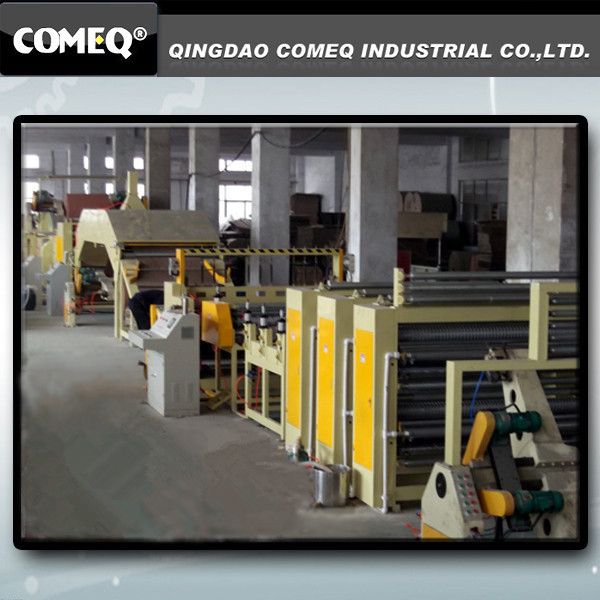

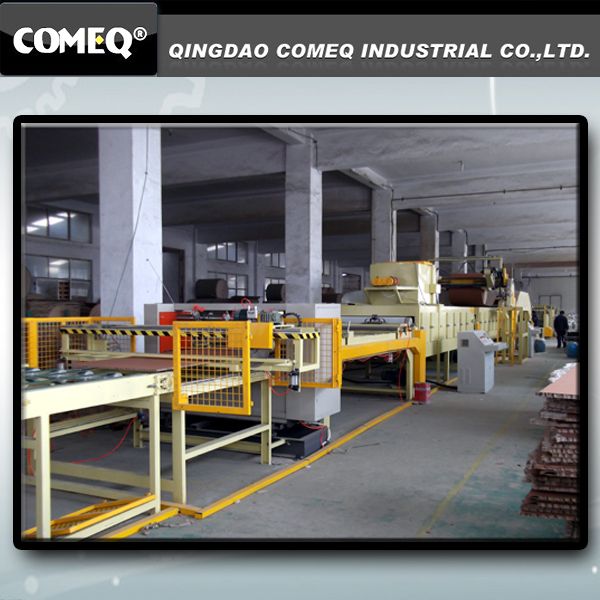

Automatic honeycomb paper core & paperboard production line is fully automatic system, which is producing endless honeycomb paper core and required honeycomb paperboard.
Main Features:
(1). advanced technology, high degree of automation, low dissipation, good usage of honeycomb paper board and low labor intensity
(2). completely computer control, touching screen operation and combination of machine, optic-electric which makes machine more stable and reliable.
(3). rational design applied to realize high yield product, high usage of raw material and pleasant working environment without dust
---just only 2-3 workers needed in the whole producing process which realizes real completely automatic production and cost efficiency.
process flow: paper loading in multi rollers---gluing---laminating---drying---cross-cut---auto gathering and transmission
Main technical parameter:
Main Features:
(1). advanced technology, high degree of automation, low dissipation, good usage of honeycomb paper board and low labor intensity
(2). completely computer control, touching screen operation and combination of machine, optic-electric which makes machine more stable and reliable.
(3). rational design applied to realize high yield product, high usage of raw material and pleasant working environment without dust
---just only 2-3 workers needed in the whole producing process which realizes real completely automatic production and cost efficiency.
process flow: paper loading in multi rollers---gluing---laminating---drying---cross-cut---auto gathering and transmission
Main technical parameter:
| Model | ZDFW-1600 |
| Max width of paper roll for core making | ≤2000mm |
| Max. width of paper core (after stretching) | 1600mm |
| Max. Width of paperboard | 1600mm |
| Cutting speed for honeycomb core |
450-450times cut/min for thickness less than 3cm 220-350times cut/min for thickness 3-8cm |
| Side length of honeycomb | 4,6,8,9,10….60mm |
| Production capacity | 6-25m/min |
| Cutting thickness for honeycomb core | 6-100mm |
| Max thickness of card board | 6-100mm |
| Cell Size in line | 2(TWO) cell size as choice |
| Wastage | 0-2% |
| Glue | Starch Glue or White emulsion(PVA) |
| Suitable Core paper | 100-160gsm |
| Suitable board surface paper | Over 160gsm |
| Machine Weight | 55tons |
| Compressed Air | 0.6MPa, output: 0.8cbm/min, capacity:≥1cbm |
| Heating method | electrical heating and heated air circulation |
| Workers | 2-3persons |
Mainly Including of:
1. Electric Shaftless Paper Roll Stand 3sets
2. Paper Roll Trolley with Track 6sets
3. Glue Smearing Device 2sets
4. Laminating Device 1set
5. Core Paper Heating and Forming Device 1set
6. Face Paper Gluer 1set
7. High Speed Paper Core Cutter (continuously) 1set
8. Paper Core Conveying and Stretching Device 1set
9. Paper Core Heating and Forming Machine 1set
10. Electric Shaftless Paper Roll Stand for paperboard lamination 1set/single lamination or 2sets/dual lamination
11. Dual Side Gluing Machine 1set
12. Paperboard Heating and Press Machine (1) 1set
13. Cooling Device 1set
14. Paperboard Heating and Press Machine (2) 1set
15. Cooling Press and Conveyor 1set
16. Paperboard Slitter 1set
17. Paperboard Transverse Cutter 1set
18.Paperboard Conveying Belt 1set
19. PLC control system 1set
1. Electric Shaftless Paper Roll Stand 3sets
2. Paper Roll Trolley with Track 6sets
3. Glue Smearing Device 2sets
4. Laminating Device 1set
5. Core Paper Heating and Forming Device 1set
6. Face Paper Gluer 1set
7. High Speed Paper Core Cutter (continuously) 1set
8. Paper Core Conveying and Stretching Device 1set
9. Paper Core Heating and Forming Machine 1set
10. Electric Shaftless Paper Roll Stand for paperboard lamination 1set/single lamination or 2sets/dual lamination
11. Dual Side Gluing Machine 1set
12. Paperboard Heating and Press Machine (1) 1set
13. Cooling Device 1set
14. Paperboard Heating and Press Machine (2) 1set
15. Cooling Press and Conveyor 1set
16. Paperboard Slitter 1set
17. Paperboard Transverse Cutter 1set
18.Paperboard Conveying Belt 1set
19. PLC control system 1set
