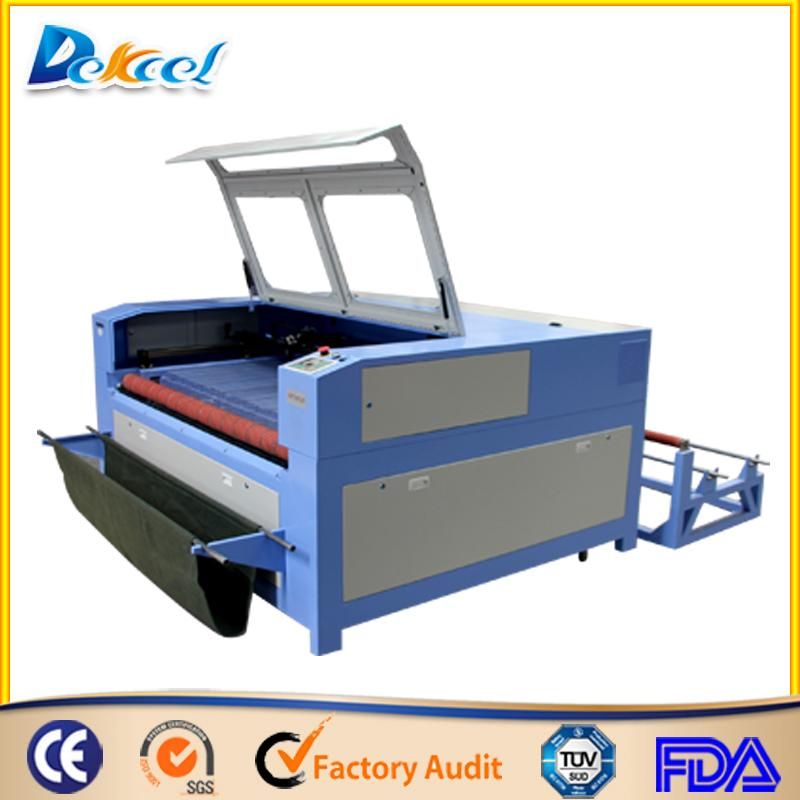

Auto Feeding Garments/Cloth/Leather/Fabric/Textile Laser Cutting Machine
$4000.00 /set
Product Details
Transaction Comments
Basic Info
- Model NO.: DEK-1810J
- Cooling System: Water Cooling
- Applicable Material: Nonmetal
- Laser Classification: Free Electron Laser
- Cutting Area: 1800*1000mm
- Graphic Format Supported: Ai, BMP, Dst, Dwg, Dxf
- Resetting Positioning Accuracy: ±0.01mm
- Operating Humidity: 5-95%
- Laser Output Control: Laser Output Control
- Trademark: DEKCEL
- Origin: Shandong Jinan China
- Application: Textile Machinery, Shoemaking Industry, Textile Industry
- Technical Class: Continuous Wave Laser
- Structure Type: Gantry Type
- Laser Technology: Laser Control Fault Cutting
- Cutting Speed: 0*1000mm/S
- Laser Tube: CO2 Laser Tube
- Guarantee Time: 1 Year, Laser Tube 6 Months
- Working Table: Auto Feed Table
- Highest Scanning Precision: 4000dpi
- Specification: CE Standard
- HS Code: 8456100090
Product Description
High speed 60W / 80W / 100W / 150W Auto feeding garment /cloth / leather /fabric / textile laser cutting machine
Laser cutting machine technical parameter
Laser cutting machine main parts
Applicable Industry
Laser cutting machine samples
Laser cutting machine introduction

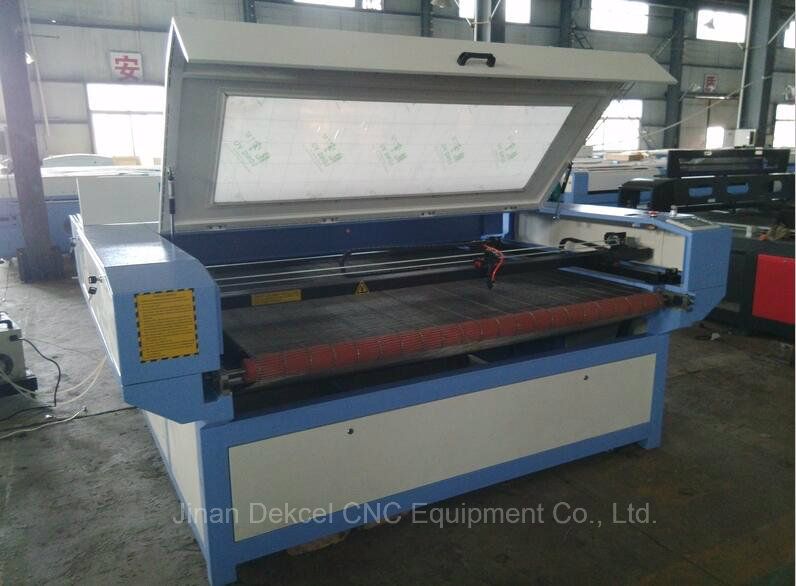

This kind of auto-feeding laser cutter machine is designed for cutting fabric, leather,cloth,paper,garment and other soft materials in rolls, which largely enhances the working efficiency and saves time.
This auto feeding laser cutter machine can be equipped with one, two or four cutting heads and auto feeding system, two or four cutting heads working at the same time. The feeding system can load materials by itself which can save the labor force and cut the cost.
This machine is especially suitable for the mass processing of textile and garment.The machine can cut any curve fast and consecutively. DSP control system makes users can complete the mass production without the connection to the computer.
We also has other machines of the same type but in different sizes, such as DEK-1390J, DEK-1610J and so on.
Besides,we can make other sizes according to your requirements.
Main features of the laser cutting machine
1) The auto-feeding system and the rotating work table ensure that the machine can cut soft materials such as fabric, PU, leather and paper in rolls automatically.
2) Accessories included: water chiller, air pump, exhaust blower, training DVD and User Manual.
3) Being integrated with more concise frame, this machine is more economical but still has the same excellent cutting and engraving effects.
4) Three unique protection functions, i.e. anti-interference function, water-protective function and power cut-off function ensure longer working life, stability.
5) Original Singapore imported lens makes the equipment produce smaller facular and stronger cutting force, greatly improving working efficiency and reducing cost.
6) This machine uses USB port and USB flash disk to transmit data, equipped with large-capacity internal memory, improving working speed and efficiency greatly.
Laser cutting machine technical parameter
Name: |
Auto feed laser cutting machine |
Processing area |
1800mm*1000mm |
Laser power |
80w ,100W,130W 150W |
Laser type: |
Sealed CO2 glass laser tube |
Cooling mode: |
Water cooling and protection system |
Resetting positioning accuracy: |
±0.01mm |
Compatible Software: |
Laser cut 5.3, CorelDraw AutoCAD Photoshop |
Whole machine size: |
1060mm*1000mm*730mm |
Engraving speed |
1-6000mm/min |
Cutting speed |
1-1000mm/min |
Cutting thickness |
0-15mm acrylic (others determined by materials) |
Resolution ratio |
≤0.0125mm |
Position system: |
Red dot |
Interface: |
USB |
Minimum shaping character |
letter 0.8mm, Chinese 2mm |
Support graphic format |
DST, PLT, BMP, DXF |
Cooling mode: |
Circulation water cooling |
Working voltage: |
AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
Operating temperature |
0-45C |
Operating humidity: |
5-95% |
Driving system |
stepper |
Packing: |
wooden box |
Guarantee time: |
1 year, laser tube 3 months |
Option: |
Rotary attachment for column materials |
Operation: |
Video to tell customer how to operate the machine |

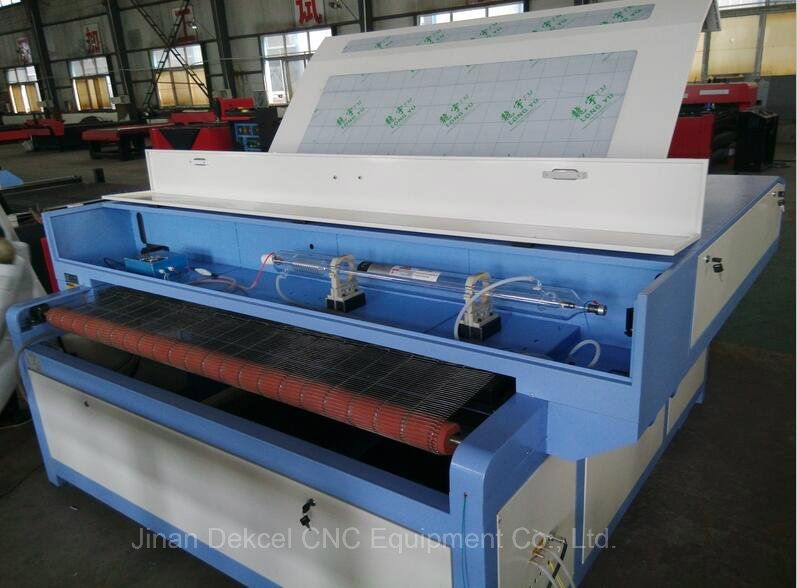

Laser cutting machine main parts
Applicable Materials
This auto-feeding laser cutter machine is suitable for laser cutter on paper, leather, cloth,fabric, acrylic, garment,wood,rubber, etc.
Applicable Industry
These models apply to cloth, leather, fabric toy, computerized embroidery cutting, electric product..
Laser cutting machine samples
Why choose us?-- We use the best components to build the most durable and high precision machine,
1). Best water cooling laser tube in China-- Reci brand, safe,longer lifespan and high precision.
2). Taiwan made linear square guide-- HIWIN brand, heavy-duty.
3). Singapore made focus lens
4). Advanced water chiller for cooling laser tube, adjust temperature automatically. Besides, it has the function that protect the laser tube from damaging caused by any incidents.
5). Top brand driver in China-- Leadshine brand high subdivision 3 phases stepper motor driver
6). DSP control system with USB interface, no need to connect with computer when working.
7). English software, user manual, installation and training video will come with machine
Laser cutting machine Package Advantage
Laser cutting machine Package Advantage
1.Our wooden case is after fumigation treatment.Needn't timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Warranty terms
1. 1 year for the whole laser cutting machine.
2. 6 months for laser tube (ordinary quality ), lens and mirror.
3. 6 months for equipments outfit, such as water pump, fan, air pump, etc
4. If you meet the problems, we can solve it with pictures, videos etc .
5. Dekcel fast technical guide and solution within 24 hours by email and web, msn or Skype!
After-sale service
1. Small parts will be supplied to you for free, such as, software CD, dongle.
2. Any problem will be replied to you within 24 hours!
3. By video, online video, solution manual in English, Email, Instant messenger, Telephone.
4. Our distributor or user in your local place will help you when necessary!
5. We supply lifelong after-sale service under our professional's guide for free!
