• DESCRIPTION







Large flow,long life,maintenance-free work and high reliability Widely used:Beer beverage,textile dyeing and bleaching pharmaceutical and medical equipment,food processing rubber machinery,organic or inorganic chemical industry high temperature sterilization,water/sewage treatment.



Long service life. Valve seat is self-correcting, self-lubricating and maintenance-free. Large flow, small flow resistance, no water hammer.

All-steel upgrade, more refined workmanship.

Main technical parameters

Fluid:Air,water,neutral gas and liquid

Supply pressure:0.2~10bar

Central Flow Hole:15mm~50mm

Use Pressure:0~25bar

Use Temperature:-20~185℃

Material of seal:Standard:temperature below 185C for PDFE

Body Material:Stainless steel

Angle Seat Valve Parameters

Interface: DN 15

Body material: SS304

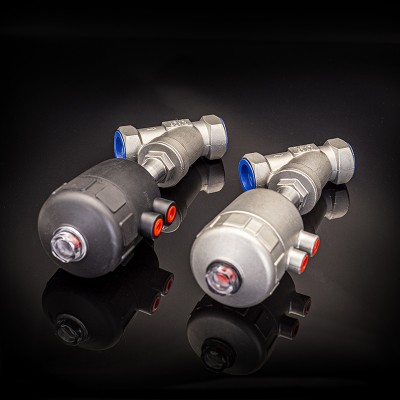

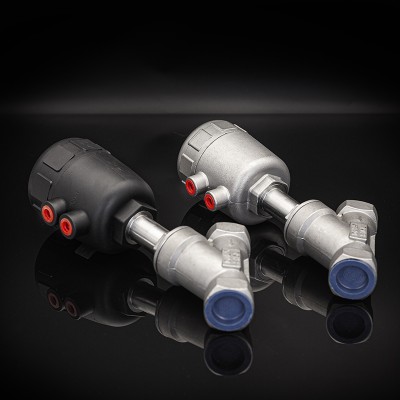

Pneumatic form: All SS304 or Plastic Top

Spool valve seal: PTFE

Stem seal: PTEE / FKM

Piston seal: FKM/NBR

Applicable medium: Aqueous natural gas or liquid, alcohol, oil, organic solvent, water vapor, weak acid or base solution

Medium temperature: PTEE: – 10~+60 °C

Working temperature: -10 C~+60 °C

Viscosity: Max 600 mm²/s

Control Medium: Air/ Neutral gas

Control pressure range: 0.3-1 MPA

Install: Install as required. Let the actuator face up.

Angle Seat Valve Thread Type Stainless Steel
