- DESCRIPTION

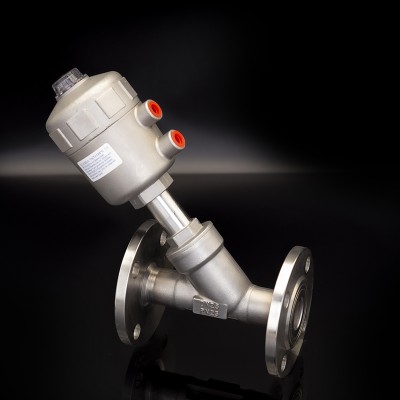

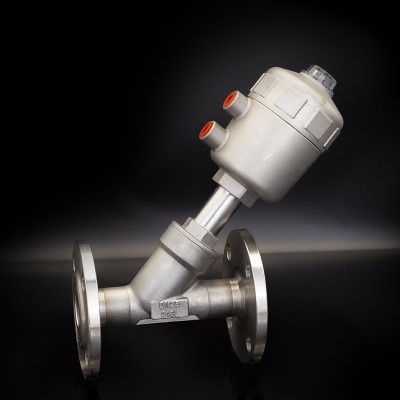

Angle Seat Valve Flange Type Stainless Steel
Large flow,long life,maintenance-free work and high reliability Widely used:Beer beverage,textile dyeing and bleaching pharmaceutical and medical equipment,food processing rubber machinery,organic or inorganic chemical industry high temperature sterilization,water/sewage treatment.
Angle Seat Valve Flange Type Stainless Steel
Angle Seat Valve Flange Type Stainless Steel
Angle Seat Valve Flange Type Stainless Steel
Main technical parameters
Fluid:Air,water,neutral gas and liquid
Supply pressure:0.2~10bar
Central Flow Hole:15mm~50mm
Use Pressure:0~25bar
Use Temperature:-20~185℃
Material of Seal:Standard:temperature below 185C for PDFE
Body Material:Stainless steel
Angle Seat Valve Flange Type Stainless Steel
Angle Seat Valve Parameters
Interface: DN 15
Body material: SS304
Pneumatic form: All SS304 or Plastic Top
Spool valve seal: PTFE
Stem seal: PTEE / FKM
Piston seal: FKM/NBR
Applicable medium: Aqueous natural gas or liquid, alcohol, oil, organic solvent, water vapor, weak acid or base solution
Medium temperature: PTEE: – 10~+60 °C
Working temperature: -10 C~+60 °C
Viscosity: Max 600 mm²/s
Control Medium: Air/ Neutral gas
Control pressure range: 0.3-1 MPA
Install: Install as required. Let the actuator face up.
Angle Seat Valve Flange Type Stainless Steel
Angle Seat Valve Flange Type Stainless Steel
Angle Seat Valve Flange Type Stainless Steel
