Agriculture Multi Span Glass Hydroponic Green House for Vegetables
$20.00 /square meters
Product Details
Transaction Comments
Basic Info
- Model NO.: SQ-Glass10.8m
- Size: Large
- Layer: Double
- Covering: Hollow Toughened Glass
- Span: 9.6m/10.8m/12m(Customization)
- Features: Stable Structure
- Usage: Vegetables/Flowers/Restaurant
- Delivery: 20 Days
- Transport Package: Nude or Carton
- Origin: Qingzhou City, China
- Type: Production Greenhouse
- Cover Material: Glass
- Greenhouse Style: Venlo Greenhouse
- Thickness: 4+9+4mm/5+6+5mm Glass
- Structure: Galvanized Steel Frame
- Optional System: Cooling System/Irrigation System/Ventilation.etc
- Color: White
- Trademark: SQ
- Specification: Customization
- HS Code: 9406900090
Product Description
1.Greenhouse Introduction

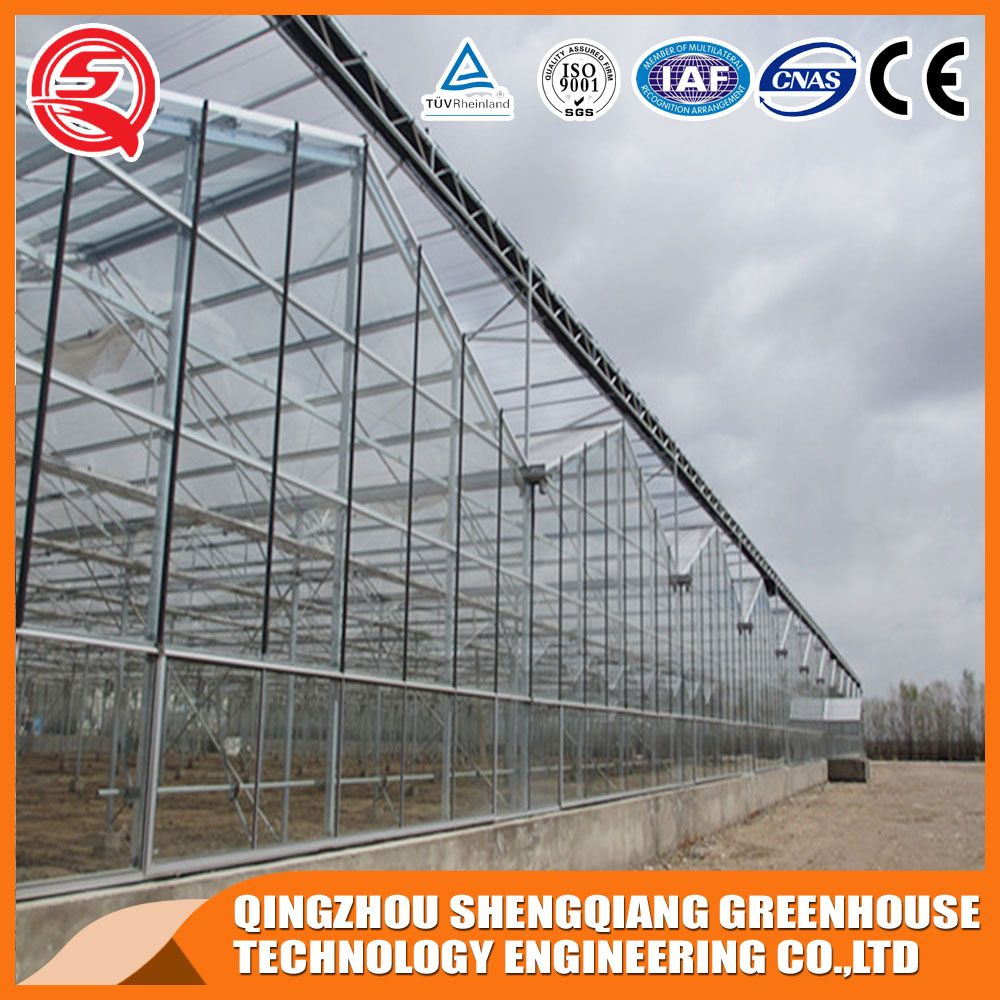

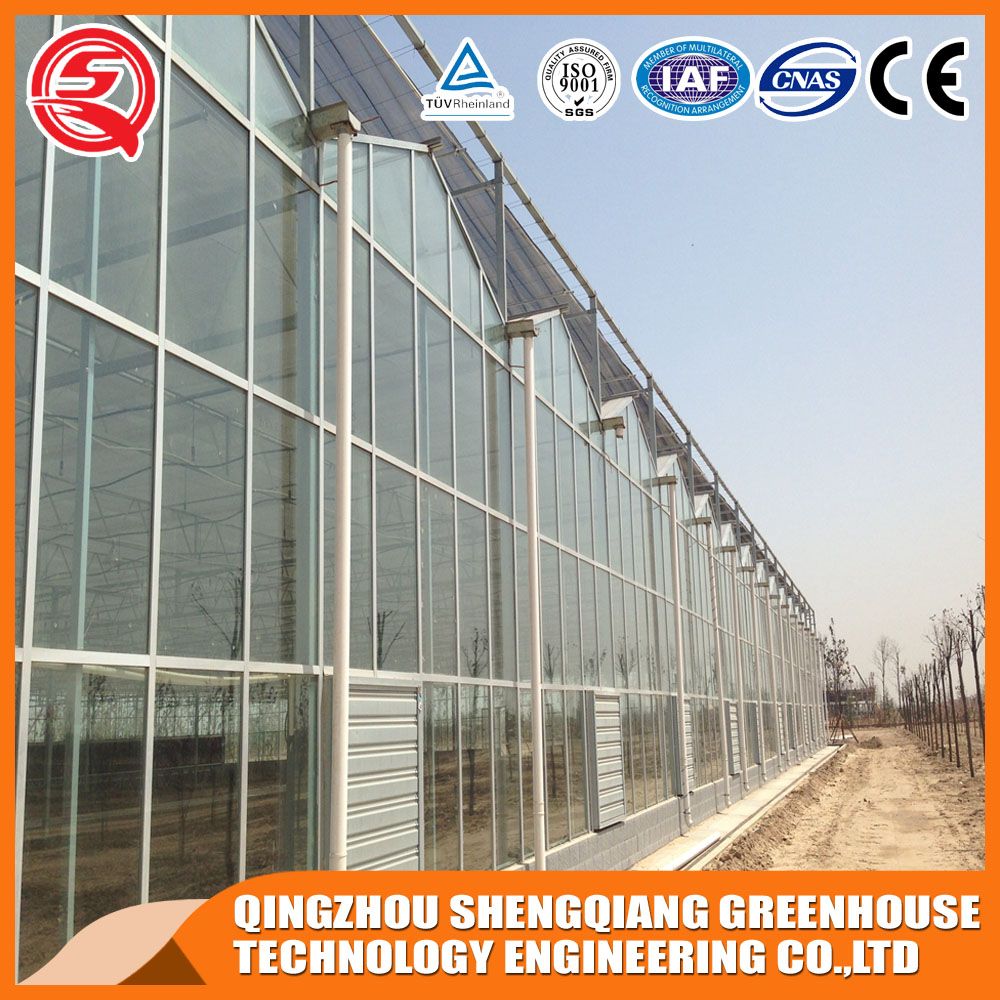

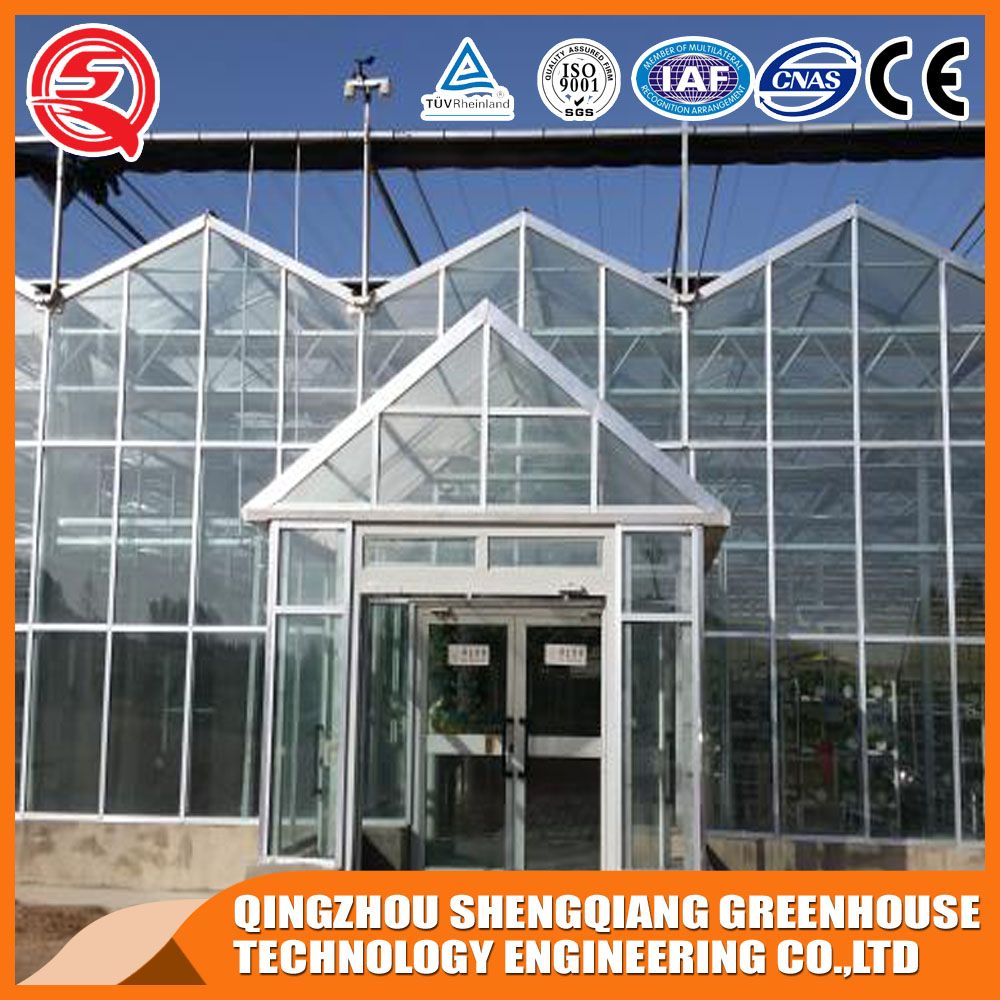

Agriculture multi span glass green house for vegetables
Glass greenhouse grow tent adopts hot-galvanized steel frame, the covering material commonly used 4-5mm high-quality float glass ortempered glass, double glazing: 4mm + 9mm + 4mm, 5mm + 6mm + 5mm Light transmittance greater than 90%, but also can choose the covering material according to customer requirements, the top of the greenhouse and surrounded by glass fixed special aluminum.
The Spec. of glass
3. Greenhouse system show
Cuatomers can choose these greenhouse system according to your needs!
4.Equipment Package and Delivery
Most parts of the product are nude packing, like steel pipes.
Others are packaged by wooden box.
Trade Terms
Payment: T/T in advance(40% deposit, and balance rest before delivery),L/C and Western Union.
Delivery Time: 20 days after receive depoist.
5. Other products
a. PC sheet greenhouse
b. Plastic film greenhouse
c. Single span film greenhouse
d. Greenhouse system
6.Our service
1. Based on the client's requirements.
2. After-sales installation and debugging.
3.Warranty period of at least 5 years.
4.High quality products, professional and technical team,best service.
7. Company Introduction
Qingzhou Shengqiang Greenhouse Technology Engineering Co., Ltd.
1.Our factory main produce the all greenhouse equipment for more than 10 years.
2.We export this greenhouse to more than 20 countries.
3.We have a professional technical and sales team!
4.We can reply you for 24 hours.
5.We can promise to give you the best price and best products.
8. FAQ
1.Q: As we have different type equipments, please indicate following details in your inquiry email.
A: (1) The specific area (L*W)
(2) Covering material
(3) Local climate
These are very important for providing you a complete solution.
2.Q:What is the minimum order quantity?
A:The minimum order quantity is 3000 square meters.But if below 3000 square meters,we also can produce it.The price is adjusted according to the quantity of order.
3.Q: Are you a manufacturer or trading company?
A: We are a manufacturer, all you are warmly welcomed to visit us!
9. Contact me
Contact: Marry Wang
Tel: 008615753637031
Website:
Agriculture multi span glass green house for vegetables
Glass greenhouse grow tent adopts hot-galvanized steel frame, the covering material commonly used 4-5mm high-quality float glass ortempered glass, double glazing: 4mm + 9mm + 4mm, 5mm + 6mm + 5mm Light transmittance greater than 90%, but also can choose the covering material according to customer requirements, the top of the greenhouse and surrounded by glass fixed special aluminum.
Structure and Configuration
(1) The skeleton is made by rectangular steel tubes that are cold-rolled, two-sided hot-galvanizing.
(2) The greenhouse can be collocated with some necessary systems, such as, inside & outside shading systems,side & roof ventilation system, heating & cooling systems,etc.
(3) The covering materials include two kinds of hollow glass. The specifications are 4mm+9mm+4mm and 5mm+6mm+5mm.
(4) The inlay materials of glass are the appropriate aluminum alloys and the adhesive tapes are used to tighten the contact area.
2.Technical Parameters:
Agriculture multi span glass greenhouse for vegetables/garden | |
Span |
9.6m/10.8m12m |
Eaves height(From sink to ground) |
3.0m~8.0m |
Covering |
Polycarbonate sheet(8mm/10mm) |
Wind load |
0.50KN/m2 |
Snow load |
0.30KN/m2 |
Dead load |
20KG/m2 |
Maximum rainfall |
140mm/h |
Hanging load |
20.5kg/m2 |
| Type | Tempered glass |
| Glass thickness | 5mm/4mm |
| Space between glass | 6mm/9mm |
| Top windows | Interlacing, Full-opened |
| Side windows | Sliding, Top-hung |
| Roof cover material | PC sheet or single tempered glass |
| All around cover material | Double glazing(5+6+5mm,4+9+4mm) |
Cuatomers can choose these greenhouse system according to your needs!
4.Equipment Package and Delivery
Most parts of the product are nude packing, like steel pipes.
Others are packaged by wooden box.
Trade Terms
Payment: T/T in advance(40% deposit, and balance rest before delivery),L/C and Western Union.
Delivery Time: 20 days after receive depoist.
5. Other products
a. PC sheet greenhouse
b. Plastic film greenhouse
c. Single span film greenhouse
d. Greenhouse system
6.Our service
1. Based on the client's requirements.
2. After-sales installation and debugging.
3.Warranty period of at least 5 years.
4.High quality products, professional and technical team,best service.
7. Company Introduction
Qingzhou Shengqiang Greenhouse Technology Engineering Co., Ltd.
1.Our factory main produce the all greenhouse equipment for more than 10 years.
2.We export this greenhouse to more than 20 countries.
3.We have a professional technical and sales team!
4.We can reply you for 24 hours.
5.We can promise to give you the best price and best products.
8. FAQ
1.Q: As we have different type equipments, please indicate following details in your inquiry email.
A: (1) The specific area (L*W)
(2) Covering material
(3) Local climate
These are very important for providing you a complete solution.
2.Q:What is the minimum order quantity?
A:The minimum order quantity is 3000 square meters.But if below 3000 square meters,we also can produce it.The price is adjusted according to the quantity of order.
3.Q: Are you a manufacturer or trading company?
A: We are a manufacturer, all you are warmly welcomed to visit us!
9. Contact me
Contact: Marry Wang
Tel: 008615753637031
Website:
