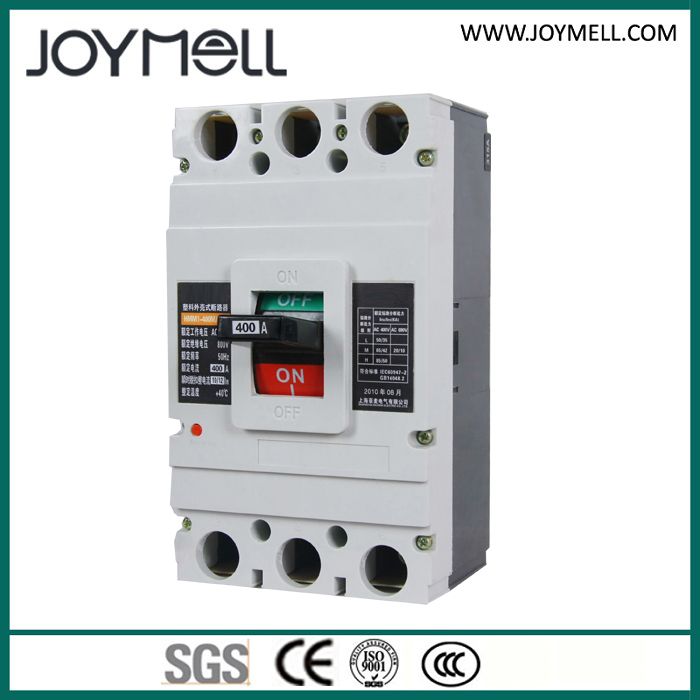

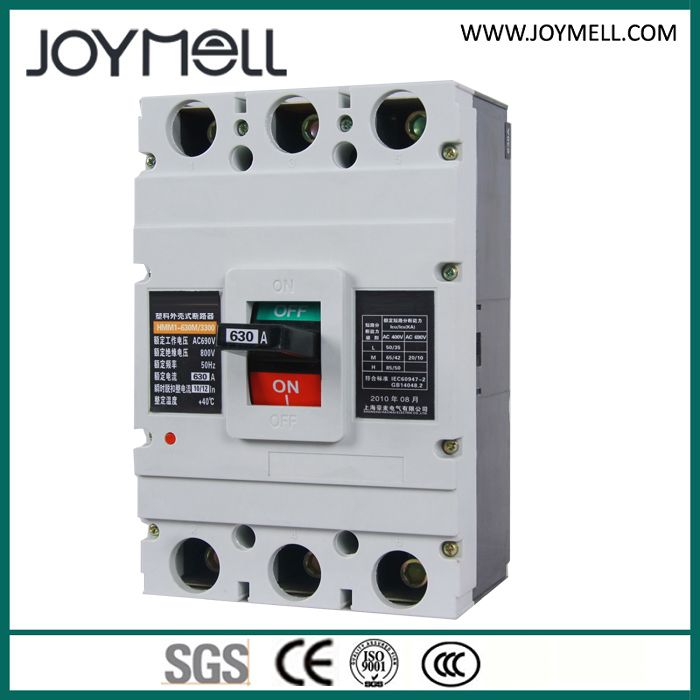

AC Jcm1 Electric Moulded Case Circuit Breaker 1A~1600A (MCCB)
$12.00 /piece
Product Details
Transaction Comments
Basic Info
- Model NO.: JCM1
- Operation: Manual & Electric
- Installation: Fixed, Insert
- Poles Number: 2p/3p4p
- Function: Over-Current, Short-Circuit, and Under Voltage
- Rated Current: 63A,100A,160A,250A,400A,630A,800A,1000A,1250A,1600
- Rated Insulation Voltage: 400,500,690V
- Breaking: Low, Medium, High
- Main Market: Africa, Europe, Asia
- Trademark: Joymell/Netural/OEM
- Origin: China
- Breaking Capacity: Low Voltage Circuit Breakers
- Arc-extinguishing Medium: Air
- Structure: MCCB
- Type: Circuit Breaker
- Certification: ISO9001-2000, CE, CCC, SGS
- Rated Voltage: 230V, 400V
- Pole: 2pole, 3pole, 4pole
- Standard: IEC60947-2
- Warranty: 2months
- Transport Package: Carton Box
- HS Code: 853620000
Product Description
AC JCM1 Electric Moulded Case Circuit Breaker 1A~1600A (MCCB)
Moulded case circuit breaker Application:
CM1 Series Moulded case circuit breaker is a new type product developed and manufactured by adopting international advanced technology.It is rated current up to 1600A. It is with protection of Over-current, short-circuit, and under voltage, it is capable of preventing damage of circuits and supply units. The product conforms to IEC60947-2 standards.
Moulded case circuit breaker Model optional:
Moulded case circuit breaker Working Conditions:
Moulded case circuit breaker Application:
CM1 Series Moulded case circuit breaker is a new type product developed and manufactured by adopting international advanced technology.It is rated current up to 1600A. It is with protection of Over-current, short-circuit, and under voltage, it is capable of preventing damage of circuits and supply units. The product conforms to IEC60947-2 standards.
Moulded case circuit breaker Model optional:
| 1: Joymell Model |
| 2: Current Frame. Inm=63, Inm=100, Inm=160, Inm=225, Inm=400, Inm=630, Inm=800, Inm=1250, Inm=2000 |
| 3: Breaking capacity. L-Low. M-Medium. H-High. |
| 4: Operation type. P-Motor operation. Z-Turn by handle operation |
| 5: Poles. 2-2Pole. 3-3Pole. 4-4Pole |
| 6: Release type, and inside accessories type. 2-Only electromagnetics. 3-Thermo electromagnetic (double)) |
| 7: Application. NA-For distributing. 2-Motor protection. 3-Other |
|
8: For 4Pole products. A-N Pole not install release, N always connected, not breaking with other 3poles. B-N Pole not install release, but N pole breaking with other 3poles. C-N pole installed with release, and always breaking with other 3poles. D- N pole installed with release, and never breaking with other 3poles. |
| 9: Install before board. Install behind board. Plug-in install. Other type install. |
| 10: Other accessories: Interlock etc. |
Moulded case circuit breaker Working Conditions:
1. The ambient air temperature. -10 °C~+40 °C; 24h average does not exceed +35 °C
2. Altitude : Installation site altitude does not exceed 2000m
3. Relative humidity not over 95%, will impacted by humidity.
2. Altitude : Installation site altitude does not exceed 2000m
3. Relative humidity not over 95%, will impacted by humidity.
4. Pollution III grade, will impacted by salt-fog, oil mist.
5. Will impacted by Mildew
6. Max inclination ±22.5%
7. When normal vessel shake, earth-quake(4g) can work normally
Moulded case circuit breaker Specification:
Moulded case circuit breaker Pictures:
Other our product series:
Q&A:
1) Q:Your company ? And products?
A: Joymell is factory for Moulded case Circuit breaker, ATS, Enclosure, Cable glands, Power supply, Current transformer etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
2) Q: Do you have forwarder?
A: Yes, we have good forwarder cooperated over 7years, they help us import and export . For small package orders, suggest to use by Express.
3) Q: Your address ?
A: Locates in Zhejiang province, Baixiang town, Chandong industrial zone.
4) What's the standards?
A: Following IEC60947 standards, high quality stable working.
5) What's about MOQ? Delivery time ?
A: Without stock, as some customized per customer's special requirement. Normally takes 5-10days.
6) What's the payment term?
A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.
7) What's your contact information ?
A: Website: , welcome to contact us anytime.
Welcome your inquiry ^!^
7. When normal vessel shake, earth-quake(4g) can work normally
Moulded case circuit breaker Specification:
|
|
Moulded case circuit breaker Pictures:
|
|
Other our product series:
| Manual transfer switch | 1A~1600A, 3P/4P. |
| Automatic Transfer switch | 1A~3200A, 2P/3P/4P. |
| Metal power distribution box | Metal box, size can color can be customized. |
| Plstic box | Different ways, competitive price, welcome to contact |
| Surge protector | B,C,D Class, AC, DC type you can choose. Different types and discharge current you choose. |
| Power supply | Hot used in Gepenerator system, 120W 12/24V. And other types |
| Current transformer | Different size you can choose, quality guarantee, hot used in Generator cabinets. |
| Push button | Metal or plastic, different types for power cabinet. |
|
Q&A:
1) Q:Your company ? And products?
A: Joymell is factory for Moulded case Circuit breaker, ATS, Enclosure, Cable glands, Power supply, Current transformer etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
2) Q: Do you have forwarder?
A: Yes, we have good forwarder cooperated over 7years, they help us import and export . For small package orders, suggest to use by Express.
3) Q: Your address ?
A: Locates in Zhejiang province, Baixiang town, Chandong industrial zone.
4) What's the standards?
A: Following IEC60947 standards, high quality stable working.
5) What's about MOQ? Delivery time ?
A: Without stock, as some customized per customer's special requirement. Normally takes 5-10days.
6) What's the payment term?
A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.
7) What's your contact information ?
A: Website: , welcome to contact us anytime.
Welcome your inquiry ^!^
